  11. Indexable Insert Drill, 25.00mm, TCF

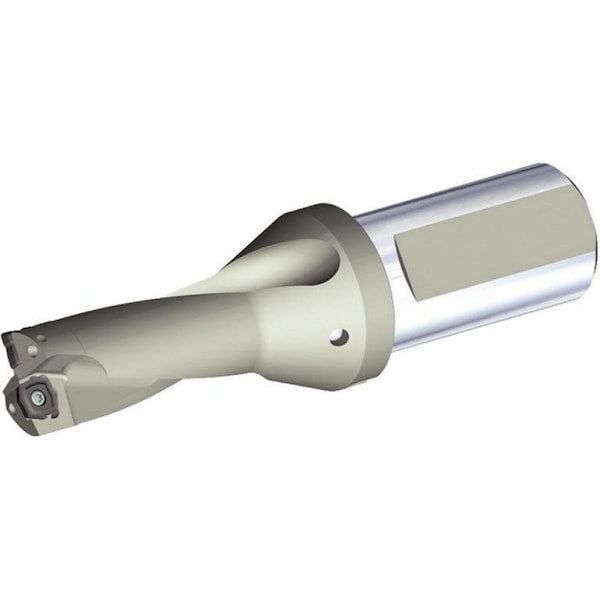

Widia Indexable Insert Drill, 25.00mm, TCF TCF220R2SLR25MC - main

Indexable Insert Drill, 25.00mm, TCF

  • Mfr # TCF220R2SLR25MC

  • Zoro # G3776873

product price: $559.99
/ea
Free Shipping & Returns

Key Features

Diameter
25.00mm
Ratio
2xD
Shank Dia.
25.00mm
Mounting Style
Screw Clamp
Cutting Direction
Right Hand
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TCF220R2SLR25MC
Zoro #
G3776873
UPC #
4050841121309
Country of Origin
Bulgaria

Dimensions

Diameter
25.00mm
Shank Dia.
25.00mm
Shank Length
56.00mm
Overall Length
129.78mm
Min. Drill Dia.
22.00mm
Flute Length
69.00mm
Max. Drilling Depth
44.78mm
Depth x Dia. Ratio
2xD
Max. Drill Dia.
22.50mm

Details

Item
Indexable Insert Drill
Ratio
2xD
Mounting Style
Screw Clamp
Cutting Direction
Right Hand
Shank Type - Machining
Round with Flat and Side Lock
ISO Number
TCF220R2SLR25MC
Toolholder Style
TCF
Spiral Direction
Right Hand
Drilling Application
45 Degrees Corner, Blind Hole, Chain, Convex, Cross Hole, Half Cylindrical, Inclined Entry, Inclined Exit, X-Offset
ANSI Code
TCF220R2SLR25MC
Central Insert Style
TCF
Standards
ISO 9766
Flute Type
Slow Spiral
Number of Inserts
2
Flanged Shank
Yes
Coolant Fed
Coolant Through
Number of Coolant Holes
2
Measurement System
Metric

Description

Indexable Insert Drill, 2xD, Max. Drilling Depth 44.78mm, TCF220R2SLR25MC, TCF, Coolant Through
