  11. Indexable Insert Drill, 32.00mm, TCF
Widia Indexable Insert Drill, 32.00mm, TCF TCF250R4SLR32MD - main

Indexable Insert Drill, 32.00mm, TCF

  • Mfr # TCF250R4SLR32MD

  • Zoro # G3762709

product price: $609.99
/ea
Free Shipping & Returns

Key Features

Diameter
32.00mm
Ratio
4xD
Shank Length
60.00mm
Shank Dia.
32.00mm
Mounting Style
Screw Clamp
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TCF250R4SLR32MD
Zoro #
G3762709
UPC #
4050839882731
Country of Origin
Bulgaria

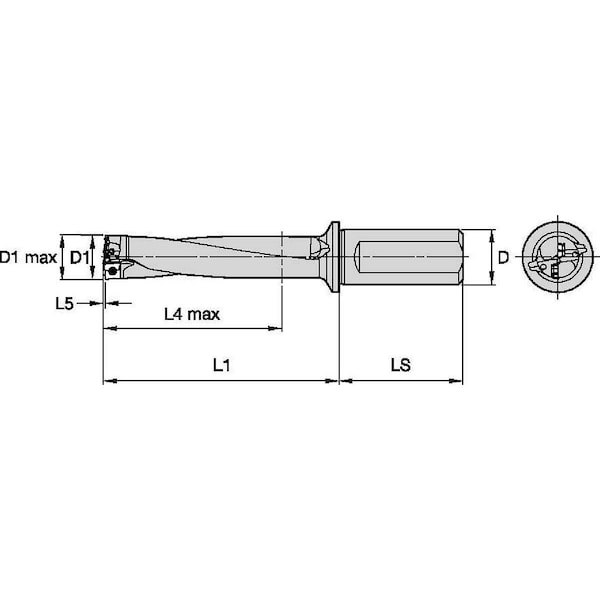

Dimensions

Diameter
32.00mm
Shank Length
60.00mm
Shank Dia.
32.00mm
Overall Length
190.91mm
Min. Drill Dia.
25.00mm
Max. Drilling Depth
100.91mm
Depth x Dia. Ratio
4xD
Flute Length
125.90mm
Seat Size
D
Max. Drill Dia.
26.00mm

Details

Item
Indexable Insert Drill
Ratio
4xD
Mounting Style
Screw Clamp
Cutting Direction
Right Hand
Central Insert Style
TCF
ISO Number
TCF250R4SLR32MD
Number of Inserts
2
Number of Coolant Holes
2
Drilling Application
45 Degrees Corner, Blind Hole, Chain, Convex, Cross Hole, Half Cylindrical, Inclined Entry, Inclined Exit, X-Offset
Coolant Fed
Coolant Through
Toolholder Style
TCF
Spiral Direction
Right Hand
ANSI Code
TCF250R4SLR32MD
Flute Type
Slow Spiral
Shank Type - Machining
Round with Flat and Side Lock
Flanged Shank
Yes
Standards
ISO 9766
Measurement System
Metric

Description

Indexable Insert Drill, 4xD, Max. Drilling Depth 100.91mm, TCF250R4SLR32MD, TCF, Coolant Through
