  11. Indexable Insert Drill, 32.00mm, TCF
Widia Indexable Insert Drill, 32.00mm, TCF TCF265R3SLR32MD - main

Indexable Insert Drill, 32.00mm, TCF

  • Mfr # TCF265R3SLR32MD

  • Zoro # G3762103

product price: $538.99
/ea
Free Shipping & Returns

Key Features

Diameter
32.00mm
Ratio
3xD
Cutting Direction
Right Hand
Shank Dia.
32.00mm
Shank Length
60.00mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TCF265R3SLR32MD
Zoro #
G3762103
UPC #
4050839882281
Country of Origin
Bulgaria

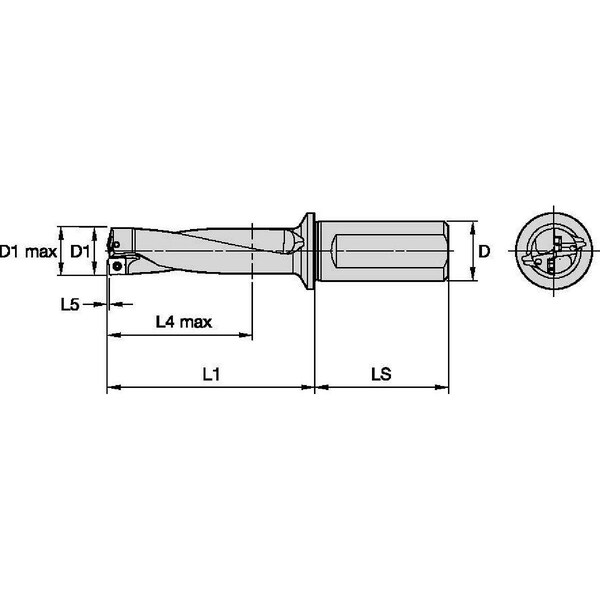

Dimensions

Diameter
32.00mm
Shank Dia.
32.00mm
Shank Length
60.00mm
Overall Length
172.45mm
Depth x Dia. Ratio
3xD
Min. Drill Dia.
26.50mm
Flute Length
107.00mm
Max. Drilling Depth
80.45mm
Max. Drill Dia.
27.50mm

Details

Item
Indexable Insert Drill
Ratio
3xD
Cutting Direction
Right Hand
Mounting Style
Screw Clamp
Drilling Application
45 Degrees Corner, Blind Hole, Chain, Convex, Cross Hole, Half Cylindrical, Inclined Entry, Inclined Exit, X-Offset
Standards
ISO 9766
Shank Type - Machining
Round with Flat and Side Lock
Coolant Fed
Coolant Through
Number of Coolant Holes
2
Toolholder Style
TCF
ISO Number
TCF265R3SLR32MD
ANSI Code
TCF265R3SLR32MD
Number of Inserts
2
Spiral Direction
Right Hand
Flute Type
Slow Spiral
Flanged Shank
Yes
Central Insert Style
TCF
Measurement System
Metric

Description

Indexable Insert Drill, 3xD, Max. Drilling Depth 80.45mm, TCF265R3SLR32MD, TCF, Coolant Through
