  11. Indexable Insert Drill, 32.00mm, TCF

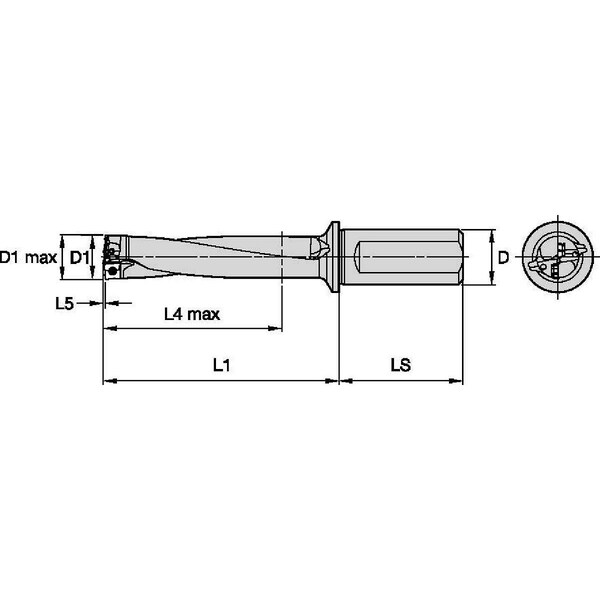

Widia Indexable Insert Drill, 32.00mm, TCF TCF265R4SLR32MD - main

Indexable Insert Drill, 32.00mm, TCF

  • Mfr # TCF265R4SLR32MD

  • Zoro # G3762015

product price: $605.99
/ea
Free Shipping & Returns

Key Features

Diameter
32.00mm
Ratio
4xD
Mounting Style
Screw Clamp
Shank Dia.
32.00mm
Shank Length
60.00mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TCF265R4SLR32MD
Zoro #
G3762015
UPC #
4050839882915
Country of Origin
Bulgaria

Dimensions

Diameter
32.00mm
Shank Dia.
32.00mm
Shank Length
60.00mm
Overall Length
198.95mm
Depth x Dia. Ratio
4xD
Max. Drilling Depth
106.95mm
Flute Length
133.50mm
Min. Drill Dia.
26.50mm
Max. Drill Dia.
27.50mm

Details

Item
Indexable Insert Drill
Ratio
4xD
Mounting Style
Screw Clamp
Cutting Direction
Right Hand
Flanged Shank
Yes
Number of Coolant Holes
2
Shank Type - Machining
Round with Flat and Side Lock
Drilling Application
45 Degrees Corner, Blind Hole, Chain, Convex, Cross Hole, Half Cylindrical, Inclined Entry, Inclined Exit, X-Offset
ANSI Code
TCF265R4SLR32MD
Toolholder Style
TCF
Standards
ISO 9766
ISO Number
TCF265R4SLR32MD
Coolant Fed
Coolant Through
Central Insert Style
TCF
Spiral Direction
Right Hand
Number of Inserts
2
Flute Type
Slow Spiral
Measurement System
Metric

Description

Indexable Insert Drill, 4xD, Max. Drilling Depth 106.95mm, TCF265R4SLR32MD, TCF, Coolant Through
