  11. Indexable Insert Drill, 32.00mm, TCF
Widia Indexable Insert Drill, 32.00mm, TCF TCF310R2SLR32ME - main

Indexable Insert Drill, 32.00mm, TCF

  • Mfr # TCF310R2SLR32ME

  • Zoro # G3749880

product price: $580.99
/ea
Free Shipping & Returns

Key Features

Diameter
32.00mm
Ratio
2xD
Mounting Style
Screw Clamp
Shank Dia.
32.00mm
Overall Length
156.12mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TCF310R2SLR32ME
Zoro #
G3749880
UPC #
4050839889778
Country of Origin
Bulgaria

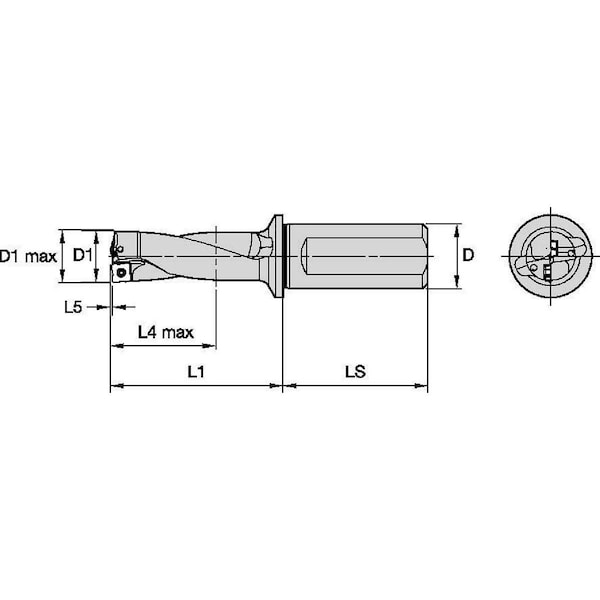

Dimensions

Diameter
32.00mm
Shank Dia.
32.00mm
Overall Length
156.12mm
Shank Length
60.00mm
Flute Length
91.00mm
Max. Drilling Depth
63.12mm
Min. Drill Dia.
31.00mm
Depth x Dia. Ratio
2xD
Max. Drill Dia.
32.00mm

Details

Item
Indexable Insert Drill
Ratio
2xD
Mounting Style
Screw Clamp
Cutting Direction
Right Hand
Coolant Fed
Coolant Through
Standards
ISO 9766
Central Insert Style
TCF
Number of Inserts
2
Flute Type
Slow Spiral
Number of Coolant Holes
2
Drilling Application
45 Degrees Corner, Blind Hole, Chain, Convex, Cross Hole, Half Cylindrical, Inclined Entry, Inclined Exit, X-Offset
Shank Type - Machining
Round with Flat and Side Lock
Flanged Shank
Yes
Toolholder Style
TCF
Spiral Direction
Right Hand
ANSI Code
TCF310R2SLR32ME
ISO Number
TCF310R2SLR32ME
Measurement System
Metric

Description

Indexable Insert Drill, 2xD, Max. Drilling Depth 63.12mm, TCF310R2SLR32ME, TCF, Coolant Through
