  11. Indexable Insert Drill, 3/4", TCF
Widia Indexable Insert Drill, 3/4", TCF TCF0625R3SLR075B - main

Indexable Insert Drill, 3/4", TCF

  • Mfr # TCF0625R3SLR075B

  • Zoro # G3776943

product price: $480.99
/ea
Free Shipping & Returns

Key Features

Diameter
3/4"
Ratio
3xD
Cutting Direction
Right Hand
Overall Length
4.7111 in
Shank Length
1.9685 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TCF0625R3SLR075B
Zoro #
G3776943
UPC #
4050841102179
Country of Origin
Bulgaria

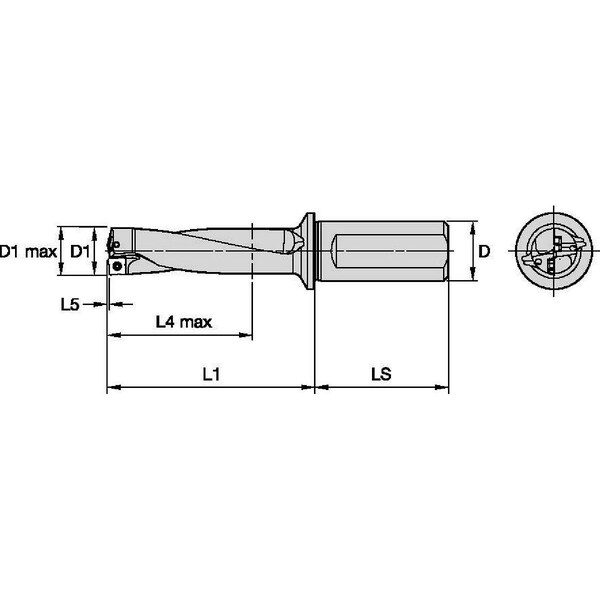

Dimensions

Diameter
3/4"
Overall Length
4.7111 in
Shank Length
1.9685 in
Shank Dia.
3/4 in
Min. Drill Dia.
5/8 in
Max. Drilling Depth
1.8980 in
Depth x Dia. Ratio
3xD
Flute Length
2.5850 in
Max. Drill Dia.
0.6446"

Details

Item
Indexable Insert Drill
Ratio
3xD
Cutting Direction
Right Hand
Mounting Style
Screw Clamp
Coolant Fed
Coolant Through
Central Insert Style
TCF
Drilling Application
45 Degrees Corner, Blind Hole, Chain, Convex, Cross Hole, Half Cylindrical, Inclined Entry, Inclined Exit, X-Offset
ISO Number
TCF0625R3SLR075B
Toolholder Style
TCF
Number of Coolant Holes
2
Flanged Shank
Yes
Flute Type
Slow Spiral
ANSI Code
TCF0625R3SLR075B
Spiral Direction
Right Hand
Shank Type - Machining
Round with Flat and Side Lock
Number of Inserts
2
Measurement System
Fractional Inch

Description

Indexable Insert Drill, 3xD, Max. Drilling Depth 1.8980 in, TCF0625R3SLR075B, TCF, Coolant Through
