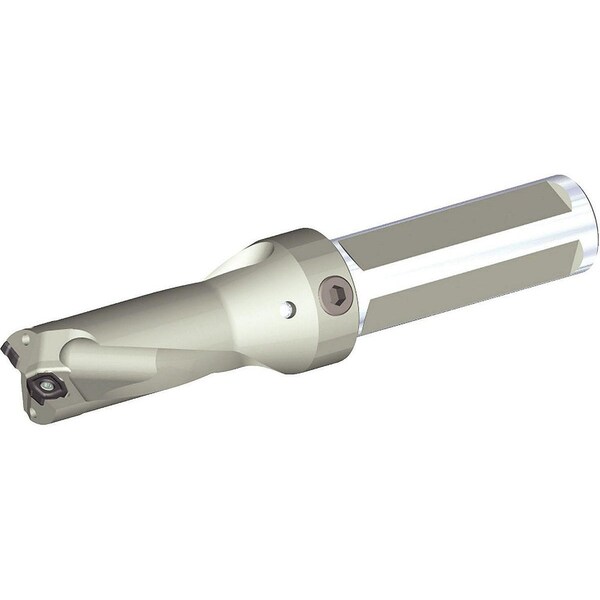

Widia Indexable Insert Drill, 3/4", TCF TCF0734R2SLR075B - main

Indexable Insert Drill, 3/4", TCF

  • Mfr # TCF0734R2SLR075B

  • Zoro # G3778459

product price: $535.99
/ea
Free Shipping & Returns

Key Features

Diameter
3/4"
Ratio
2xD
Shank Length
50.00mm
Overall Length
112.46mm
Cutting Direction
Right Hand
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TCF0734R2SLR075B
Zoro #
G3778459
UPC #
4050841101905
Country of Origin
Bulgaria

Dimensions

Diameter
3/4"
Shank Length
50.00mm
Overall Length
112.46mm
Shank Dia.
3/4 in
Min. Drill Dia.
18.64mm
Depth x Dia. Ratio
2xD
Flute Length
58.50mm
Max. Drilling Depth
37.94mm
Max. Drill Dia.
19.14mm

Details

Item
Indexable Insert Drill
Ratio
2xD
Cutting Direction
Right Hand
Mounting Style
Screw Clamp
Drilling Application
45 Degrees Corner, Blind Hole, Chain, Convex, Cross Hole, Half Cylindrical, Inclined Entry, Inclined Exit, X-Offset
Flute Type
Slow Spiral
Number of Inserts
2
Number of Coolant Holes
2
ISO Number
TCF0734R2SLR075B
Toolholder Style
TCF
Shank Type - Machining
Round with Flat and Side Lock
Spiral Direction
Right Hand
Central Insert Style
TCF
Flanged Shank
Yes
Coolant Fed
Coolant Through
ANSI Code
TCF0734R2SLR075B
Measurement System
Fractional Inch

Description

Indexable Insert Drill, 2xD, Max. Drilling Depth 37.94mm, TCF0734R2SLR075B, TCF, Coolant Through
