  11. Indexable Insert Drill, 40.00mm, TCF, Flute Length: 111.60mm

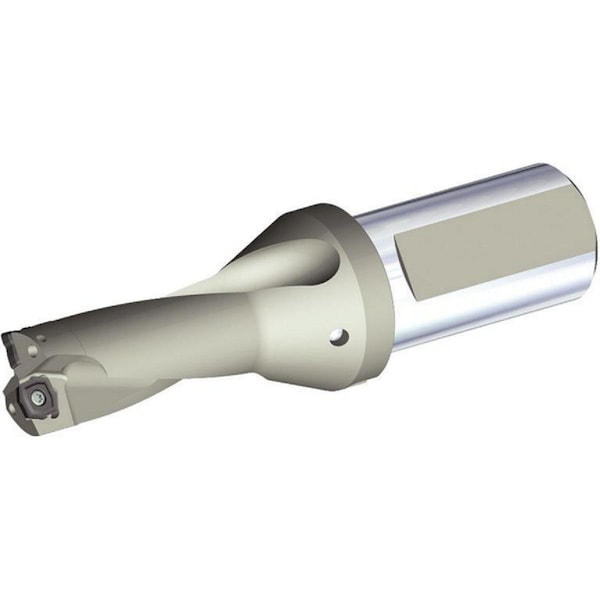

Widia Indexable Insert Drill, 40.00mm, TCF, Flute Length: 111.60mm TCF380R2SLR40MF - main

Indexable Insert Drill, 40.00mm, TCF, Flute Length: 111.60mm

  • Mfr # TCF380R2SLR40MF

  • Zoro # G3777381

product price: $620.99
/ea
Free Shipping & Returns

Key Features

Diameter
40.00mm
Ratio
2xD
Shank Length
70.00mm
Cutting Direction
Right Hand
Overall Length
188.38mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TCF380R2SLR40MF
Zoro #
G3777381
UPC #
4050841108102
Country of Origin
Bulgaria

Dimensions

Diameter
40.00mm
Shank Length
70.00mm
Overall Length
188.38mm
Shank Dia.
40.00mm
Min. Drill Dia.
38.00mm
Flute Length
111.60mm
Depth x Dia. Ratio
2xD
Max. Drilling Depth
77.38mm
Max. Drill Dia.
39.00mm

Details

Item
Indexable Insert Drill
Ratio
2xD
Cutting Direction
Right Hand
Mounting Style
Screw Clamp
Central Insert Style
TCF
Spiral Direction
Right Hand
Flute Type
Slow Spiral
ISO Number
TCF380R2SLR40MF
Standards
ISO 9766
Toolholder Style
TCF
Number of Inserts
2
Shank Type - Machining
Round with Flat and Side Lock
Coolant Fed
Coolant Through
Flanged Shank
Yes
Number of Coolant Holes
2
Drilling Application
45 Degrees Corner, Blind Hole, Chain, Convex, Cross Hole, Half Cylindrical, Inclined Entry, Inclined Exit, X-Offset
ANSI Code
TCF380R2SLR40MF
Measurement System
Metric

Description

Indexable Insert Drill, 2xD, Max. Drilling Depth 77.38mm, TCF380R2SLR40MF, TCF, Coolant Through
