  11. Indexable Insert Drill, 40.00mm, TCF

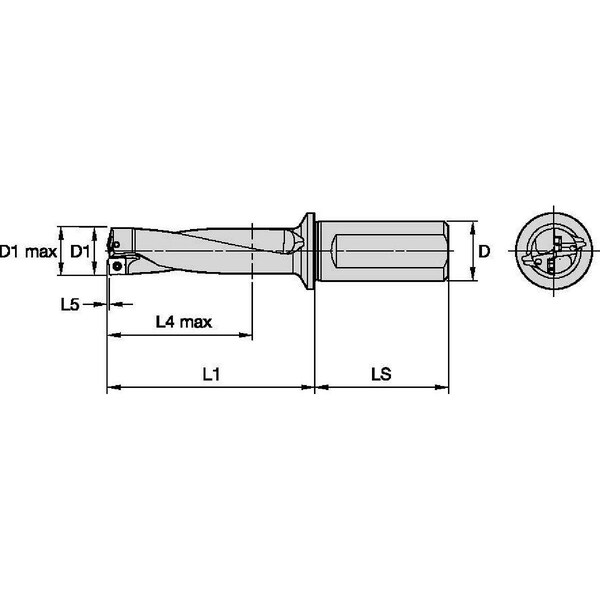

Widia Indexable Insert Drill, 40.00mm, TCF TCF390R3SLR40MF - main

Indexable Insert Drill, 40.00mm, TCF

  • Mfr # TCF390R3SLR40MF

  • Zoro # G3777853

product price: $605.99
/ea
Free Shipping & Returns

Key Features

Diameter
40.00mm
Ratio
3xD
Cutting Direction
Right Hand
Shank Dia.
40.00mm
Overall Length
230.41mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TCF390R3SLR40MF
Zoro #
G3777853
UPC #
4050841109093
Country of Origin
Bulgaria

Dimensions

Diameter
40.00mm
Shank Dia.
40.00mm
Overall Length
230.41mm
Shank Length
70.00mm
Min. Drill Dia.
39.00mm
Max. Drilling Depth
118.41mm
Depth x Dia. Ratio
3xD
Flute Length
153.50mm
Max. Drill Dia.
40.00mm

Details

Item
Indexable Insert Drill
Ratio
3xD
Cutting Direction
Right Hand
Mounting Style
Screw Clamp
Flute Type
Slow Spiral
Spiral Direction
Right Hand
Number of Inserts
2
ANSI Code
TCF390R3SLR40MF
Number of Coolant Holes
2
Flanged Shank
Yes
Central Insert Style
TCF
Coolant Fed
Coolant Through
ISO Number
TCF390R3SLR40MF
Shank Type - Machining
Round with Flat and Side Lock
Drilling Application
45 Degrees Corner, Blind Hole, Chain, Convex, Cross Hole, Half Cylindrical, Inclined Entry, Inclined Exit, X-Offset
Toolholder Style
TCF
Standards
ISO 9766
Measurement System
Metric

Description

Indexable Insert Drill, 3xD, Max. Drilling Depth 118.41mm, TCF390R3SLR40MF, TCF, Coolant Through
