  11. Indexable Insert Drill, 40.00mm, TCF

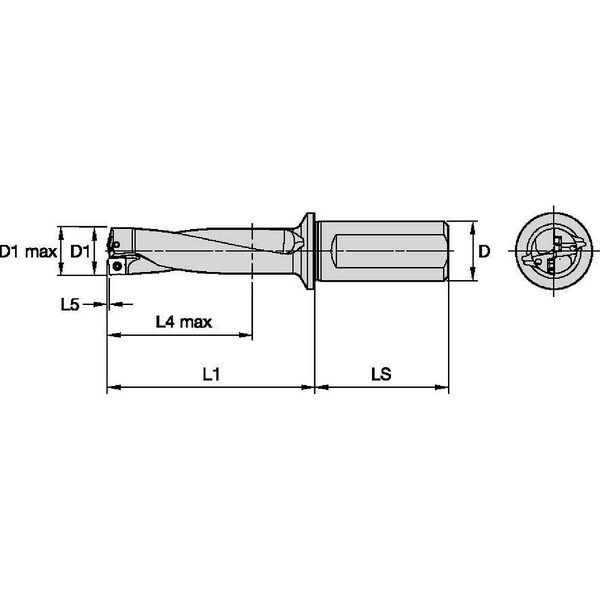

Widia Indexable Insert Drill, 40.00mm, TCF TCF470R3SLR40MG - main

Indexable Insert Drill, 40.00mm, TCF

  • Mfr # TCF470R3SLR40MG

  • Zoro # G3761035

product price: $655.99
/ea
Free Shipping & Returns

Key Features

Diameter
40.00mm
Ratio
3xD
Mounting Style
Screw Clamp
Shank Length
70.00mm
Overall Length
256.70mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TCF470R3SLR40MG
Zoro #
G3761035
UPC #
4050841115575
Country of Origin
Bulgaria

Dimensions

Diameter
40.00mm
Shank Length
70.00mm
Overall Length
256.70mm
Shank Dia.
40.00mm
Flute Length
180.30mm
Min. Drill Dia.
47.00mm
Max. Drilling Depth
142.70mm
Depth x Dia. Ratio
3xD
Max. Drill Dia.
48.00mm

Details

Item
Indexable Insert Drill
Ratio
3xD
Mounting Style
Screw Clamp
Cutting Direction
Right Hand
Shank Type - Machining
Round with Flat and Side Lock
Standards
ISO 9766
ANSI Code
TCF470R3SLR40MG
Drilling Application
45 Degrees Corner, Blind Hole, Chain, Convex, Cross Hole, Half Cylindrical, Inclined Entry, Inclined Exit, X-Offset
Central Insert Style
TCF
Number of Inserts
2
Flanged Shank
Yes
Coolant Fed
Coolant Through
Toolholder Style
TCF
ISO Number
TCF470R3SLR40MG
Spiral Direction
Right Hand
Flute Type
Slow Spiral
Number of Coolant Holes
2
Measurement System
Metric

Description

Indexable Insert Drill, 3xD, Max. Drilling Depth 142.70mm, TCF470R3SLR40MG, TCF, Coolant Through
