  11. Indexable Insert Drill, 40.00mm, TCF

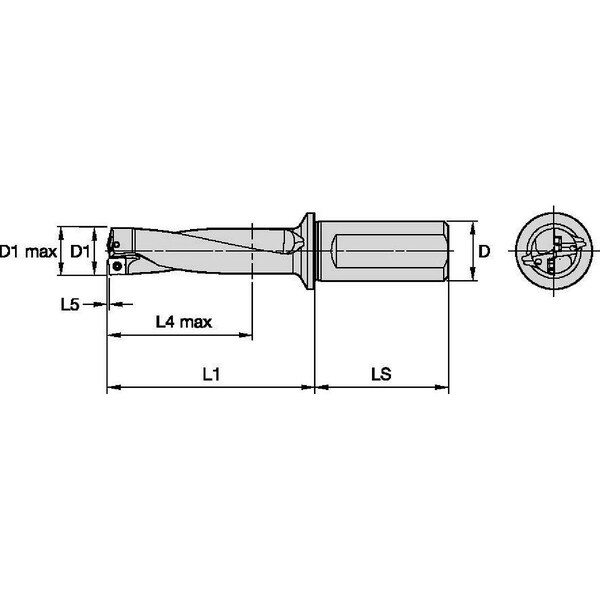

Widia Indexable Insert Drill, 40.00mm, TCF TCF530R3SLR40MG - main

Indexable Insert Drill, 40.00mm, TCF

  • Mfr # TCF530R3SLR40MG

  • Zoro # G3747631

product price: $753.99
/ea
Free Shipping & Returns

Key Features

Diameter
40.00mm
Ratio
3xD
Shank Length
70.00mm
Overall Length
279.87mm
Shank Dia.
40.00mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TCF530R3SLR40MG
Zoro #
G3747631
UPC #
4050841116206
Country of Origin
Bulgaria

Dimensions

Diameter
40.00mm
Shank Length
70.00mm
Overall Length
279.87mm
Shank Dia.
40.00mm
Depth x Dia. Ratio
3xD
Min. Drill Dia.
53.00mm
Max. Drilling Depth
160.87mm
Flute Length
203.30mm
Max. Drill Dia.
54.00mm

Details

Item
Indexable Insert Drill
Ratio
3xD
Mounting Style
Screw Clamp
Cutting Direction
Right Hand
Drilling Application
45 Degrees Corner, Blind Hole, Chain, Convex, Cross Hole, Half Cylindrical, Inclined Entry, Inclined Exit, X-Offset
ANSI Code
TCF530R3SLR40MG
Spiral Direction
Right Hand
Number of Inserts
2
Standards
ISO 9766
Flute Type
Slow Spiral
Coolant Fed
Coolant Through
ISO Number
TCF530R3SLR40MG
Flanged Shank
Yes
Shank Type - Machining
Round with Flat and Side Lock
Number of Coolant Holes
2
Central Insert Style
TCF
Toolholder Style
TCF
Measurement System
Metric

Description

Indexable Insert Drill, 3xD, Max. Drilling Depth 160.87mm, TCF530R3SLR40MG, TCF, Coolant Through
