  11. Indexable Insert Drill, 40.00mm, TCF
Widia Indexable Insert Drill, 40.00mm, TCF TCF580R2SLR40MH - main

Indexable Insert Drill, 40.00mm, TCF

  • Mfr # TCF580R2SLR40MH

  • Zoro # G3776779

product price: $817.99
/ea
Free Shipping & Returns

Key Features

Diameter
40.00mm
Ratio
2xD
Shank Length
70.00mm
Shank Dia.
40.00mm
Cutting Direction
Right Hand
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TCF580R2SLR40MH
Zoro #
G3776779
UPC #
4050839902552
Country of Origin
Bulgaria

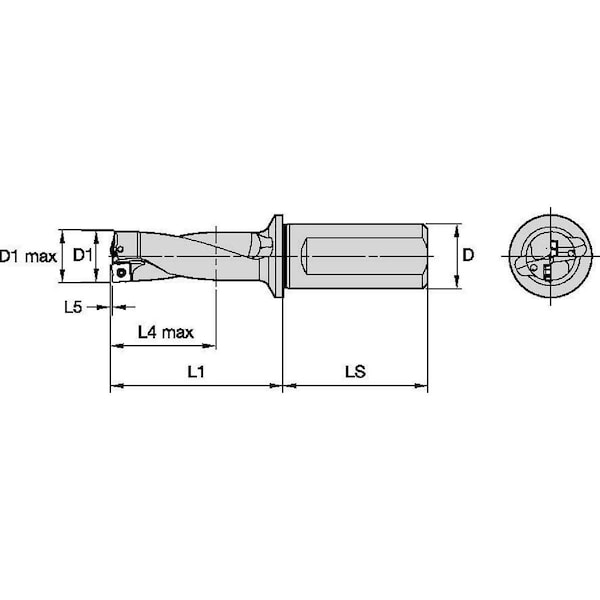

Dimensions

Diameter
40.00mm
Shank Length
70.00mm
Shank Dia.
40.00mm
Overall Length
235.09mm
Depth x Dia. Ratio
2xD
Flute Length
158.70mm
Max. Drilling Depth
118.09mm
Min. Drill Dia.
58.00mm
Max. Drill Dia.
59.00mm

Details

Item
Indexable Insert Drill
Ratio
2xD
Cutting Direction
Right Hand
Mounting Style
Screw Clamp
Number of Inserts
2
Toolholder Style
TCF
Central Insert Style
TCF
ANSI Code
TCF580R2SLR40MH
Shank Type - Machining
Round with Flat and Side Lock
Standards
ISO 9766
Flanged Shank
Yes
Spiral Direction
Right Hand
Drilling Application
45 Degrees Corner, Blind Hole, Chain, Convex, Cross Hole, Half Cylindrical, Inclined Entry, Inclined Exit, X-Offset
Number of Coolant Holes
2
ISO Number
TCF580R2SLR40MH
Flute Type
Slow Spiral
Coolant Fed
Coolant Through
Measurement System
Metric

Description

Indexable Insert Drill, 2xD, Max. Drilling Depth 118.09mm, TCF580R2SLR40MH, TCF, Coolant Through
