  11. Indexable Insert Drill, 40.00mm, TCF

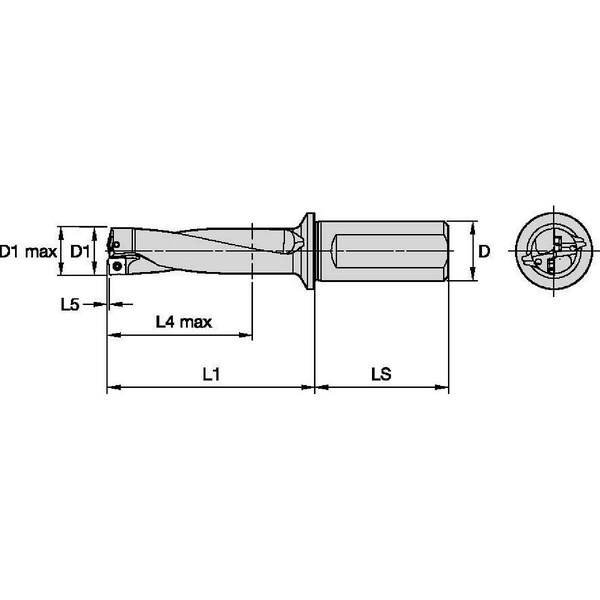

Widia Indexable Insert Drill, 40.00mm, TCF TCF580R3SLR40MH - main

Indexable Insert Drill, 40.00mm, TCF

  • Mfr # TCF580R3SLR40MH

  • Zoro # G3777205

product price: $740.99
/ea
Free Shipping & Returns

Key Features

Diameter
40.00mm
Ratio
3xD
Shank Dia.
40.00mm
Cutting Direction
Right Hand
Shank Length
70.00mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TCF580R3SLR40MH
Zoro #
G3777205
UPC #
4050839903634
Country of Origin
Bulgaria

Dimensions

Diameter
40.00mm
Shank Dia.
40.00mm
Shank Length
70.00mm
Overall Length
293.09mm
Depth x Dia. Ratio
3xD
Max. Drilling Depth
176.09mm
Flute Length
216.70mm
Min. Drill Dia.
58.00mm
Max. Drill Dia.
59.00mm

Details

Item
Indexable Insert Drill
Ratio
3xD
Cutting Direction
Right Hand
Mounting Style
Screw Clamp
ANSI Code
TCF580R3SLR40MH
Standards
ISO 9766
Number of Inserts
2
ISO Number
TCF580R3SLR40MH
Toolholder Style
TCF
Flanged Shank
Yes
Shank Type - Machining
Round with Flat and Side Lock
Flute Type
Slow Spiral
Number of Coolant Holes
2
Coolant Fed
Coolant Through
Drilling Application
45 Degrees Corner, Blind Hole, Chain, Convex, Cross Hole, Half Cylindrical, Inclined Entry, Inclined Exit, X-Offset
Spiral Direction
Right Hand
Central Insert Style
TCF
Measurement System
Metric

Description

Indexable Insert Drill, 3xD, Max. Drilling Depth 176.09mm, TCF580R3SLR40MH, TCF, Coolant Through
