  11. Indexable Insert Drill, 40.00mm, TCF

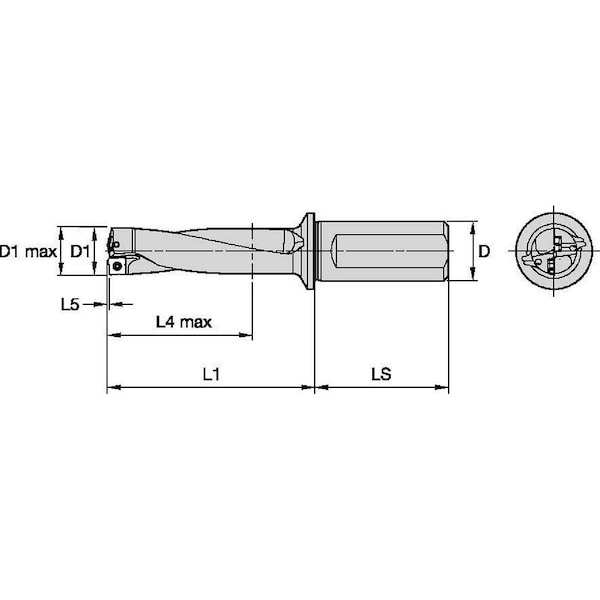

Widia Indexable Insert Drill, 40.00mm, TCF TCF590R3SLR40MH - main

Indexable Insert Drill, 40.00mm, TCF

  • Mfr # TCF590R3SLR40MH

  • Zoro # G3776830

product price: $865.99
/ea
Free Shipping & Returns

Key Features

Diameter
40.00mm
Ratio
3xD
Shank Dia.
40.00mm
Overall Length
297.12mm
Cutting Direction
Right Hand
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TCF590R3SLR40MH
Zoro #
G3776830
UPC #
4050839903726
Country of Origin
Bulgaria

Dimensions

Diameter
40.00mm
Shank Dia.
40.00mm
Overall Length
297.12mm
Shank Length
70.00mm
Depth x Dia. Ratio
3xD
Max. Drilling Depth
179.12mm
Flute Length
220.40mm
Min. Drill Dia.
59.00mm
Max. Drill Dia.
60.00mm

Details

Item
Indexable Insert Drill
Ratio
3xD
Cutting Direction
Right Hand
Mounting Style
Screw Clamp
Shank Type - Machining
Round with Flat and Side Lock
ISO Number
TCF590R3SLR40MH
Coolant Fed
Coolant Through
Number of Inserts
2
Spiral Direction
Right Hand
ANSI Code
TCF590R3SLR40MH
Toolholder Style
TCF
Flanged Shank
Yes
Number of Coolant Holes
2
Drilling Application
45 Degrees Corner, Blind Hole, Chain, Convex, Cross Hole, Half Cylindrical, Inclined Entry, Inclined Exit, X-Offset
Standards
ISO 9766
Central Insert Style
TCF
Flute Type
Slow Spiral
Measurement System
Metric

Description

Indexable Insert Drill, 3xD, Max. Drilling Depth 179.12mm, TCF590R3SLR40MH, TCF, Coolant Through
