Indexable Profiling End Mill, M100 Series, High Speed Steel, 4.00mm Depth of Cut
Mfr # 12391011000
Zoro # G3803309
product price: $512.99
/ea
Free Shipping & Returns
Key Features
Series
M100
Overall Length
132.00mm
Depth of Cut
4.00mm
Material - Machining
High Speed Steel
Insert Size
RD__0802
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
12391011000
Zoro #
G3803309
UPC #
4021169172427
Country of Origin
Germany

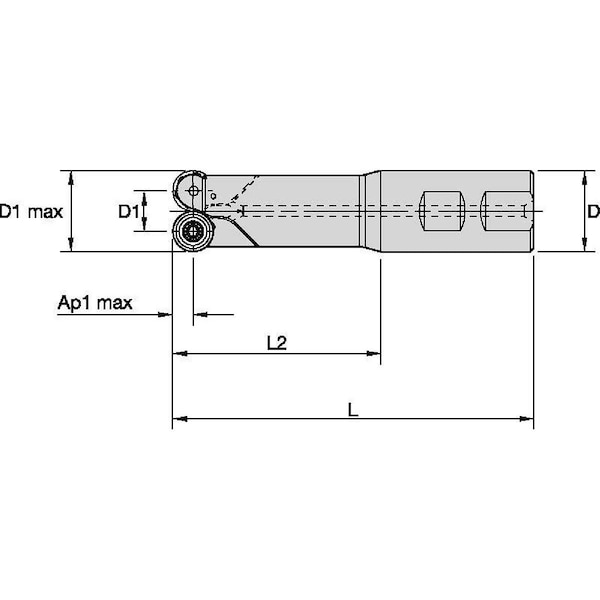

Dimensions
Overall Length
132.00mm
Depth of Cut
4.00mm
Insert Size
RD__0802
Shank Dia.
20.00mm
Head Projection Length
82.00mm
Head Dia.
16.00mm
Max. Cutting Dia.
16.00mm
Shank Length
50.00mm
Description
Indexable Profiling End Mill, Max. Cutting Dia. 16.00mm, Depth of Cut 4.00mm, Shank Dia. 20.00mm, Overall Length 132.00mm, ANSI Code 12391011000, Compatible Hardware Insert Screw M3x0.5 x 5.5 T8, Torx Driver, Coolant Fed Coolant Through, Cutting Application 3D Profiling, Face Milling, Helical Milling, Pocketing, Ramping: Blank, Side/Shoulder Milling: Ball Nose, Slotting: Square End
