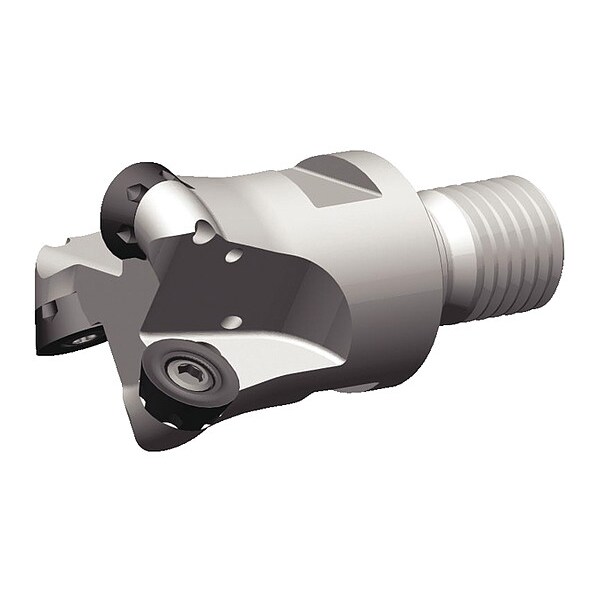

Indexable Profiling End Mill, M100 Series, High Speed Steel, 6.00mm Depth of Cut
Mfr # 12391051200
Zoro # G3801714
product price: $621.99
/ea
Free Shipping & Returns
Key Features
Series
M100
Overall Length
63.00mm
Depth of Cut
6.00mm
Material - Machining
High Speed Steel
Cutting Direction
Right Hand
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
12391051200
Zoro #
G3801714
UPC #
4021169170560
Country of Origin
Czechia
Dimensions
Overall Length
63.00mm
Depth of Cut
6.00mm
Insert Size
RD___1204
Shank Dia.
28.00mm
Head Dia.
40.00mm
Shank Length
23.00mm
Connection Size
M16
Head Projection Length
40.00mm
Max. Cutting Dia.
40.00mm
Description
Indexable Profiling End Mill, Max. Cutting Dia. 40.00mm, Depth of Cut 6.00mm, Shank Dia. 28.00mm, Overall Length 63.00mm, ANSI Code 12391051200, Compatible Hardware Insert Screw M3.5x0.6 x 8.9 T15, Torx Wrench, Connection Size M16, Coolant Fed Coolant Through, Cutting Application 3D Profiling, Face Milling, Helical Milling, Pocketing, Ramping: Blank, Side/Shoulder Milling: Ball Nose, Slotting: Square End
