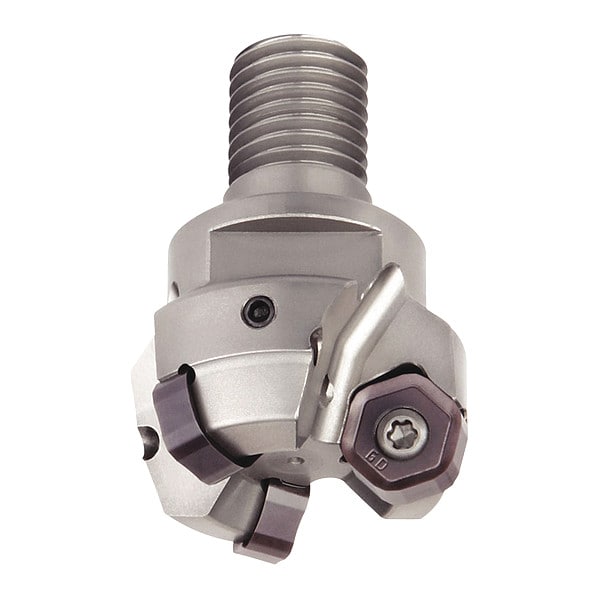

Indexable Profiling End Mill, M1200 Mini Series, High Speed Steel, 1.70mm Depth of Cut
Mfr # M1200HF025Z03M16HN07
Zoro # G3803832
product price:Â $540.99
/ea
Free Shipping & Returns
Key Features
Series
M1200 Mini
Overall Length
56.50mm
Depth of Cut
1.70mm
Material - Machining
High Speed Steel
Insert Size
0704
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
M1200HF025Z03M16HN07
Zoro #
G3803832
UPC #
4021169601545
Country of Origin
United States
Dimensions
Overall Length
56.50mm
Depth of Cut
1.70mm
Insert Size
0704
Shank Dia.
29.00mm
Head Projection Length
32.00mm
Connection Size
M16
Min. Cutting Dia.
25.00mm
Shank Length
24.50mm
Max. Cutting Dia.
39.13mm
Description
Indexable Profiling End Mill, Max. Cutting Dia. 39.13mm, Depth of Cut 1.70mm, Shank Dia. 29.00mm, Overall Length 56.50mm, ANSI Code M1200HF025Z03M16HN07, Compatible Hardware Flat Point Socket Set Screw, Insert Screw M4x0.7 x 10 T15, Torx Driver, Connection Size M16, Coolant Fed Coolant Through, Cutting Application Face Milling
