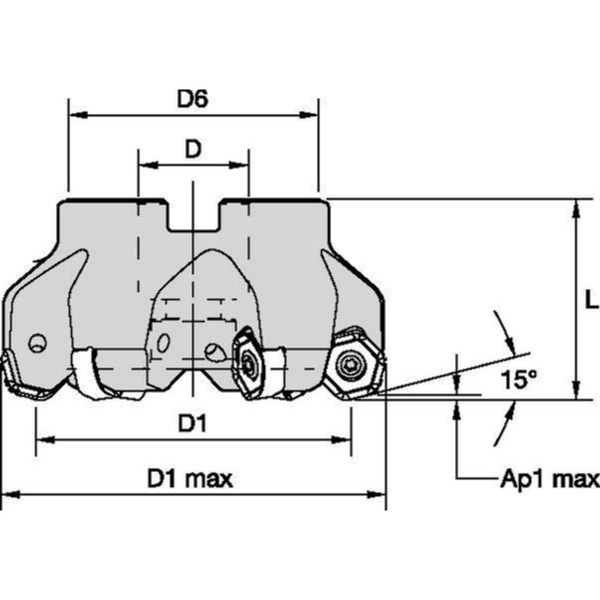

Indexable Profiling End Mill, M1200 Series, High Speed Steel, 1.70mm Depth of Cut
Mfr # M1200HF063Z06HN07
Zoro # G3802292
product price:Â $930.99
/ea
Free Shipping & Returns
Key Features
Series
M1200
Overall Length
40.00mm
Depth of Cut
1.70mm
Material - Machining
High Speed Steel
Cutting Direction
Right Hand
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
M1200HF063Z06HN07
Zoro #
G3802292
UPC #
4021169601057
Country of Origin
Germany
Dimensions
Overall Length
40.00mm
Depth of Cut
1.70mm
Insert Size
0704
Max. Cutting Dia.
77.13mm
Arbor Dia.
22.00mm
Hub Outside Dia.
50.00mm
Details
Item
Indexable Profiling End Mill
Series
M1200
Material - Machining
High Speed Steel
Cutting Direction
Right Hand
Insert Shape
120 Degrees Hexagon
Rake
-7 Degrees Axial, -7 Degrees Radial
ANSI Code
M1200HF063Z06HN07
Insert Style
HNGJ ANENLD
Cutting Application
Face Milling, Side and Face Milling
Max. Speed
10,100 RPM
Compatible Hardware
Anti-Seize Lubricant, Insert Screw M4x0.7 x 10 T15, Torx Driver
ISO Number
M1200HF063Z06HN07
Number of Inserts
6
Features
First Choice for Low Depth of Cut Face Milling, High-Feed Capability, Twelve Cutting Edges
Insert Holding Type
Screw
Coolant Fed
Coolant Through
Description
Indexable Profiling End Mill, Max. Cutting Dia. 77.13mm, Depth of Cut 1.70mm, Overall Length 40.00mm, ANSI Code M1200HF063Z06HN07, Compatible Hardware Anti-Seize Lubricant, Insert Screw M4x0.7 x 10 T15, Torx Driver, Coolant Fed Coolant Through, Cutting Application Face Milling, Side and Face Milling
