Indexable Profiling End Mill, M1200 Series, High Speed Steel, 3.50mm Depth of Cut
Mfr # M1200D400Z09S150HN07
Zoro # G3800314
product price:Â $1,174.99
/ea
Free Shipping & Returns
Key Features
Series
M1200
Overall Length
44.45mm
Depth of Cut
3.50mm
Material - Machining
High Speed Steel
Insert Size
0704
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
M1200D400Z09S150HN07
Zoro #
G3800314
UPC #
4021169667237
Country of Origin
India

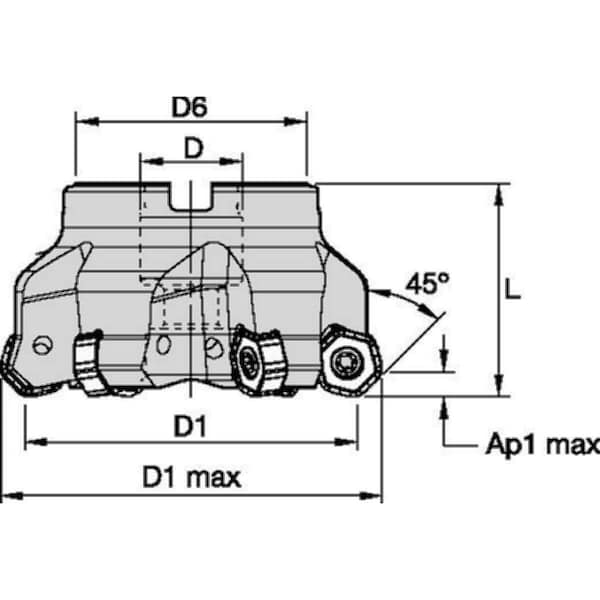

Dimensions
Overall Length
44.45mm
Depth of Cut
3.50mm
Insert Size
0704
Max. Cutting Dia.
110.30mm
Arbor Dia.
1-1/2"
Hub Outside Dia.
93.00mm
Details
Item
Indexable Profiling End Mill
Series
M1200
Material - Machining
High Speed Steel
Cutting Direction
Right Hand
Insert Shape
120 Degrees Hexagon
Rake
-5.2 Degrees Radial, -7 Degrees Axial
ANSI Code
M1200D400Z09S150HN07
Compatible Hardware
Coolant Screw Assembly, Insert Screw M4x0.7 x 10 T15, Torx Driver
Features
First Choice for Low Depth of Cut Face Milling, Maximum Number of Teeth per Diameter, Twelve Cutting Edges
Cutting Application
Face Milling, Side and Face Milling, Side/Shoulder Milling: Eased Chamfer
Coolant Fed
Coolant Through
ISO Number
M1200D400Z09S150HN07
Insert Holding Type
Screw
Max. Speed
6,300 RPM
Insert Style
HNGJ ANENLD
Number of Inserts
9
Description
Indexable Profiling End Mill, Max. Cutting Dia. 110.30mm, Depth of Cut 3.50mm, Overall Length 44.45mm, ANSI Code M1200D400Z09S150HN07, Compatible Hardware Coolant Screw Assembly, Insert Screw M4x0.7 x 10 T15, Torx Driver, Coolant Fed Coolant Through, Cutting Application Face Milling, Side and Face Milling, Side/Shoulder Milling: Eased Chamfer
