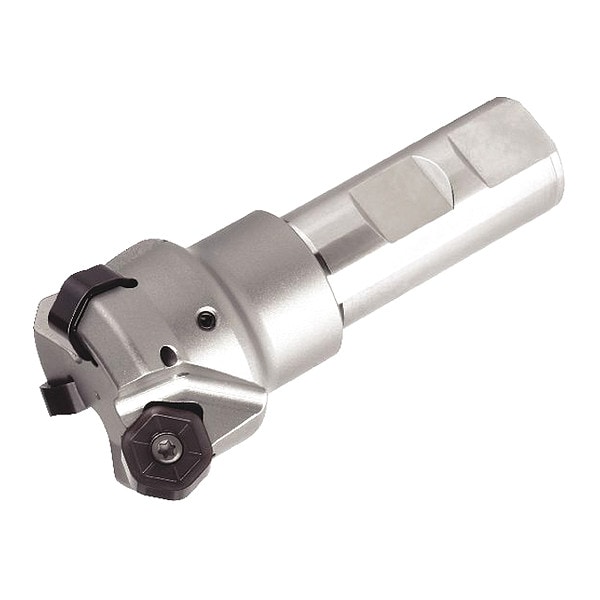

Indexable Profiling End Mill, M1200 Series, High Speed Steel, 4.50mm Depth of Cut
Mfr # M1200D040Z04B25HN09
Zoro # G3801933
product price:Â $597.99
/ea
Free Shipping & Returns
Key Features
Series
M1200
Overall Length
107.00mm
Depth of Cut
4.50mm
Material - Machining
High Speed Steel
Cutting Direction
Right Hand
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
M1200D040Z04B25HN09
Zoro #
G3801933
UPC #
4021169649608
Country of Origin
United States
Dimensions
Overall Length
107.00mm
Depth of Cut
4.50mm
Shank Dia.
25.00mm
Insert Size
0905
Shank Length
57.00mm
Max. Cutting Dia.
51.00mm
Neck Dia.
31.90mm
Head Projection Length
50.00mm
Min. Cutting Dia.
40.00mm
Description
Indexable Profiling End Mill, Max. Cutting Dia. 51.00mm, Depth of Cut 4.50mm, Shank Dia. 25.00mm, Overall Length 107.00mm, ANSI Code M1200D040Z04B25HN09, Compatible Hardware Flat Point Socket Set Screw, Insert Screw M4x0.7 x 10 T15, Torx Driver, Coolant Fed Coolant Through, Cutting Application Face Milling
