Indexable Profiling End Mill, M1200 Series, High Speed Steel, 4.50mm Depth of Cut
Mfr # M1200D100Z08HN09
Zoro # G3801629
product price:Â $1,410.99
/ea
Free Shipping & Returns
Key Features
Series
M1200
Overall Length
50.00mm
Depth of Cut
4.50mm
Material - Machining
High Speed Steel
Cutting Direction
Right Hand
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
M1200D100Z08HN09
Zoro #
G3801629
UPC #
4021169649295
Country of Origin
Czechia

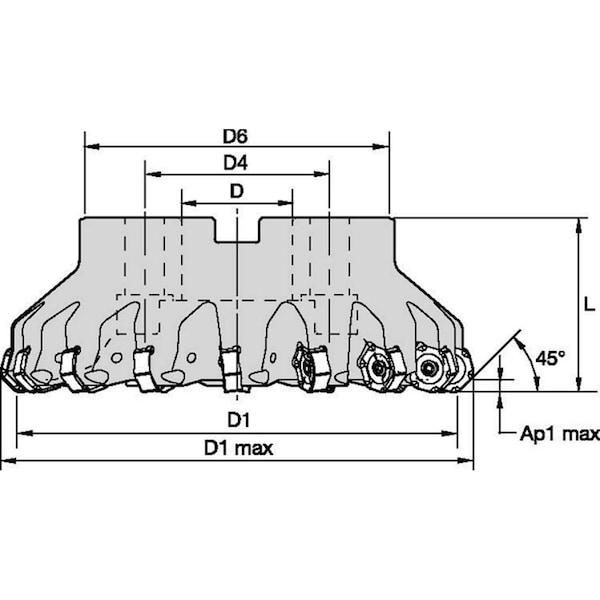

Dimensions
Overall Length
50.00mm
Depth of Cut
4.50mm
Insert Size
0905
Max. Cutting Dia.
110.98mm
Arbor Dia.
32.00mm
Hub Outside Dia.
80.00mm
Details
Item
Indexable Profiling End Mill
Series
M1200
Material - Machining
High Speed Steel
Cutting Direction
Right Hand
Insert Shape
120 Degrees Hexagon
Rake
-4.5 Degrees Radial
Compatible Hardware
Insert Screw M4x0.7 x 10 T15, Torx Driver
Number of Inserts
8
Insert Style
HNGJ ANENLD
Coolant Fed
Coolant Through
ISO Number
M1200D100Z08HN09
Insert Holding Type
Screw
Features
Low Cutting Forces for Maximum Productivity, Twelve Cutting Edges
Cutting Application
Side and Face Milling
Max. Speed
6,300 RPM
ANSI Code
M1200D100Z08HN09
Description
Indexable Profiling End Mill, Max. Cutting Dia. 110.98mm, Depth of Cut 4.50mm, Overall Length 50.00mm, ANSI Code M1200D100Z08HN09, Compatible Hardware Insert Screw M4x0.7 x 10 T15, Torx Driver, Coolant Fed Coolant Through, Cutting Application Side and Face Milling
