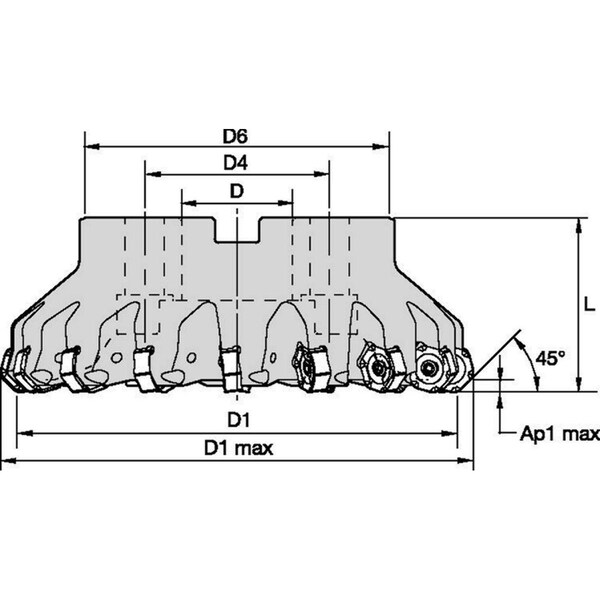

Indexable Profiling End Mill, M1200 Series, High Speed Steel, 4.50mm Depth of Cut
Mfr # M1200D160Z12HN09
Zoro # G3784485
product price:Â $2,044.99
/ea
Free Shipping & Returns
Key Features
Series
M1200
Overall Length
63.00mm
Depth of Cut
4.50mm
Material - Machining
High Speed Steel
Cutting Direction
Right Hand
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
M1200D160Z12HN09
Zoro #
G3784485
UPC #
4021169783838
Country of Origin
Japan
Dimensions
Overall Length
63.00mm
Depth of Cut
4.50mm
Insert Size
0905
Max. Cutting Dia.
170.97mm
Arbor Dia.
40.00mm
Hub Outside Dia.
110.00mm
Details
Item
Indexable Profiling End Mill
Series
M1200
Material - Machining
High Speed Steel
Cutting Direction
Right Hand
Insert Shape
120 Degrees Hexagon
Rake
-3.1 Degrees Radial
Cutting Application
Side and Face Milling
ANSI Code
M1200D160Z12HN09
Compatible Hardware
Coolant Shower Plate, Coolant Spann Screw, Insert Screw M4x0.7 x 10 T15, Torx Driver
Number of Inserts
12
Max. Speed
3,900 RPM
Insert Holding Type
Screw
Features
Low Cutting Forces for Maximum Productivity, Twelve Cutting Edges
Insert Style
HNGJ ANENLD
Coolant Fed
Coolant Through
ISO Number
M1200D160Z12HN09
Description
Indexable Profiling End Mill, Max. Cutting Dia. 170.97mm, Depth of Cut 4.50mm, Overall Length 63.00mm, ANSI Code M1200D160Z12HN09, Compatible Hardware Coolant Shower Plate, Coolant Spann Screw, Insert Screw M4x0.7 x 10 T15, Torx Driver, Coolant Fed Coolant Through, Cutting Application Side and Face Milling
