Indexable Profiling End Mill, M1200 Series, High Speed Steel, 4.70mm Depth of Cut
Mfr # M1200HD100Z06HN07
Zoro # G3801111
product price:Â $1,013.99
/ea
Free Shipping & Returns
Key Features
Series
M1200
Overall Length
50.00mm
Depth of Cut
4.70mm
Material - Machining
High Speed Steel
Insert Size
0704
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
M1200HD100Z06HN07
Zoro #
G3801111
UPC #
4021169601774
Country of Origin
United States

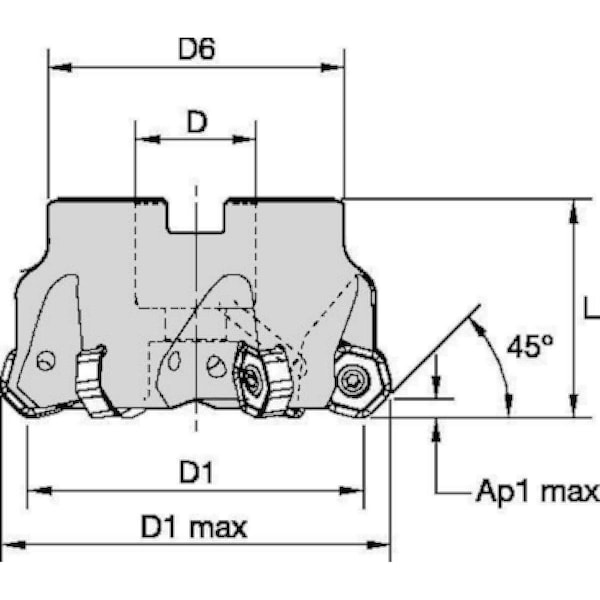

Dimensions
Overall Length
50.00mm
Depth of Cut
4.70mm
Insert Size
0704
Max. Cutting Dia.
106.74mm
Arbor Dia.
32.00mm
Hub Outside Dia.
80.00mm
Details
Item
Indexable Profiling End Mill
Series
M1200
Material - Machining
High Speed Steel
Cutting Direction
Right Hand
Insert Shape
120 Degrees Hexagon
Rake
-6.4 Degrees Radial, -7 Degrees Axial
Insert Holding Type
Screw
Cutting Application
Face Milling, Side and Face Milling, Side/Shoulder Milling: Eased Chamfer
ANSI Code
M1200HD100Z06HN07
Max. Speed
6,300 RPM
Insert Style
HNGJ ANENLD
ISO Number
M1200HD100Z06HN07
Number of Inserts
6
Coolant Fed
Coolant Through
Compatible Hardware
Anti-Seize Lubricant, Insert Screw M4x0.7 x 10 T15, Torx Driver
Features
First Choice for Low Depth of Cut Face Milling, Maximum Number of Teeth per Diameter, Twelve Cutting Edges
Description
Indexable Profiling End Mill, Max. Cutting Dia. 106.74mm, Depth of Cut 4.70mm, Overall Length 50.00mm, ANSI Code M1200HD100Z06HN07, Compatible Hardware Anti-Seize Lubricant, Insert Screw M4x0.7 x 10 T15, Torx Driver, Coolant Fed Coolant Through, Cutting Application Face Milling, Side and Face Milling, Side/Shoulder Milling: Eased Chamfer
