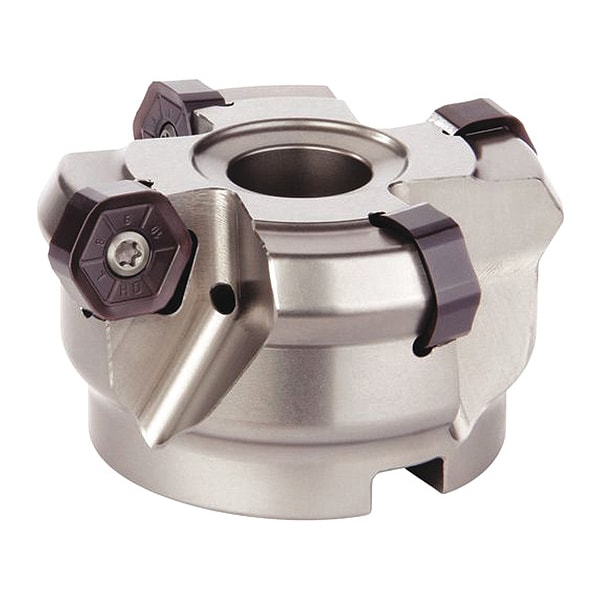

Indexable Profiling End Mill, M1200 Series, High Speed Steel, 6.00mm Depth of Cut
Mfr # M1200HD080Z08HN09
Zoro # G3802152
product price:Â $1,138.99
/ea
Free Shipping & Returns
Key Features
Series
M1200
Overall Length
50.00mm
Depth of Cut
6.00mm
Material - Machining
High Speed Steel
Cutting Direction
Right Hand
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
M1200HD080Z08HN09
Zoro #
G3802152
UPC #
4021169767968
Country of Origin
Guatemala
Dimensions
Overall Length
50.00mm
Depth of Cut
6.00mm
Insert Size
0905
Max. Cutting Dia.
88.52mm
Arbor Dia.
27.00mm
Hub Outside Dia.
60.00mm
Details
Item
Indexable Profiling End Mill
Series
M1200
Material - Machining
High Speed Steel
Cutting Direction
Right Hand
Insert Shape
120 Degrees Hexagon
Rake
-7.5 Degrees Radial, -7 Degrees Axial
Compatible Hardware
Anti-Seize Lubricant, Insert Screw M4x0.7 x 10 T15, Torx Driver
Max. Speed
7,900 RPM
Number of Inserts
8
Insert Style
HNGJ ANENLD
Features
Higher AP1 Max with Standard Insert, Twelve Cutting Edges
Cutting Application
Face Milling, Side and Face Milling, Side/Shoulder Milling: Eased Chamfer
Coolant Fed
Coolant Through
ISO Number
M1200HD080Z08HN09
Insert Holding Type
Screw
ANSI Code
M1200HD080Z08HN09
Description
Indexable Profiling End Mill, Max. Cutting Dia. 88.52mm, Depth of Cut 6.00mm, Overall Length 50.00mm, ANSI Code M1200HD080Z08HN09, Compatible Hardware Anti-Seize Lubricant, Insert Screw M4x0.7 x 10 T15, Torx Driver, Coolant Fed Coolant Through, Cutting Application Face Milling, Side and Face Milling, Side/Shoulder Milling: Eased Chamfer
