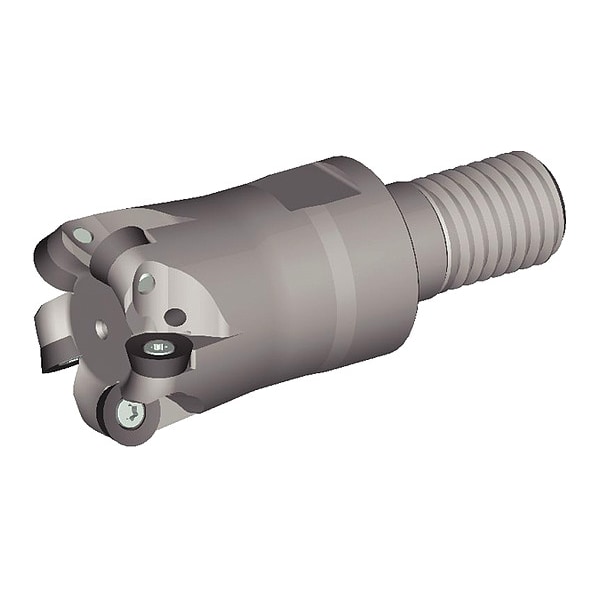

Indexable Profiling End Mill, M170 Series, High Speed Steel, 5.00mm Depth of Cut
Mfr # M170D042Z06M16RD10
Zoro # G3785529
product price: $520.99
/ea
Free Shipping & Returns
Key Features
Series
M170
Overall Length
69.50mm
Depth of Cut
5.00mm
Material - Machining
High Speed Steel
Insert Size
RD.X1003..
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
M170D042Z06M16RD10
Zoro #
G3785529
UPC #
4021169617324
Country of Origin
Spain
Dimensions
Overall Length
69.50mm
Depth of Cut
5.00mm
Insert Size
RD.X1003..
Shank Dia.
29.00mm
Shank Length
24.50mm
Head Dia.
42.00mm
Head Projection Length
45.00mm
Connection Size
M16
Max. Cutting Dia.
42.00mm
Description
Indexable Profiling End Mill, Max. Cutting Dia. 42.00mm, Depth of Cut 5.00mm, Shank Dia. 29.00mm, Overall Length 69.50mm, ANSI Code M170D042Z06M16RD10, Compatible Hardware Insert Screw M3.5x0.6 x 7.7 T15, Torx Driver, Connection Size M16, Coolant Fed Coolant Through, Cutting Application 3D Profiling, Face Milling, Helical Milling, Pocketing, Ramping: Blank, Side/Shoulder Milling: Ball Nose, Slotting: Square End
