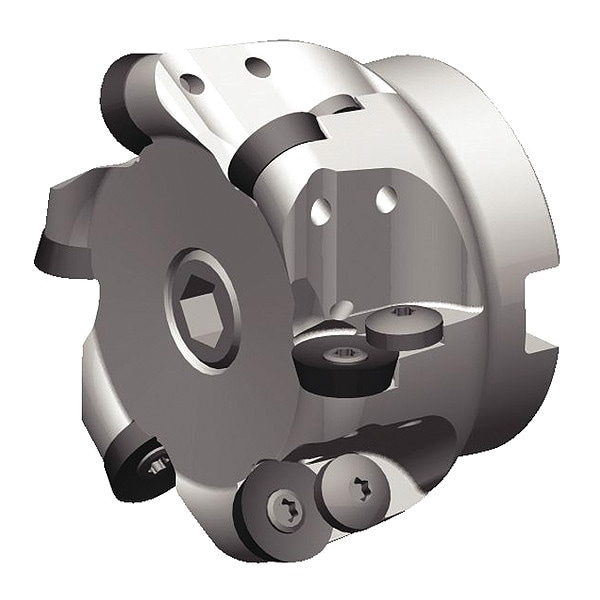

Indexable Profiling End Mill, M170 Series, High Speed Steel, 8.00mm Depth of Cut
Mfr # M170D080Z06RD16
Zoro # G3800664
product price: $829.99
/ea
Free Shipping & Returns
Key Features
Series
M170
Overall Length
50.00mm
Depth of Cut
8.00mm
Material - Machining
High Speed Steel
Cutting Direction
Right Hand
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
M170D080Z06RD16
Zoro #
G3800664
UPC #
4021169679520
Country of Origin
Spain
Dimensions
Overall Length
50.00mm
Depth of Cut
8.00mm
Insert Size
1604
Max. Cutting Dia.
80.00mm
Arbor Dia.
27.00mm
Hub Outside Dia.
60.00mm
Details
Item
Indexable Profiling End Mill
Series
M170
Material - Machining
High Speed Steel
Cutting Direction
Right Hand
Insert Shape
Round
Rake
-3 Degrees Radial
Insert Style
RD.X
Coolant Fed
Coolant Through
ISO Number
M170D080Z06RD16
Number of Inserts
6
Max. Speed
4,900 RPM
Compatible Hardware
Insert Screw, Insert Screw M4.5x0.75 x 9.85 T, SHCS M12 1.75P x 30, SHCS with Coolant Groove, Torx Driver
Features
Designed for Maximum Performance, Ideally Suited for Die and Mold Manufacturing, Premium Nickel-Coated Bodies
ANSI Code
M170D080Z06RD16
Cutting Application
3D Profiling, Face Milling, Helical Milling, Pocketing, Ramping: Blank, Side and Face Milling, Side/Shoulder Milling: Ball Nose, Slotting: Square End
Description
Indexable Profiling End Mill, Max. Cutting Dia. 80.00mm, Depth of Cut 8.00mm, Overall Length 50.00mm, ANSI Code M170D080Z06RD16, Compatible Hardware Insert Screw, Insert Screw M4.5x0.75 x 9.85 T, SHCS M12 1.75P x 30, SHCS with Coolant Groove, Torx Driver, Coolant Fed Coolant Through, Cutting Application 3D Profiling, Face Milling, Helical Milling, Pocketing, Ramping: Blank, Side and Face Milling, Side/Shoulder Milling: Ball Nose, Slotting: Square End
