  6. Indexable Profiling End Mill, M200 Series, High Speed Steel, 0.3700 in Depth of Cut

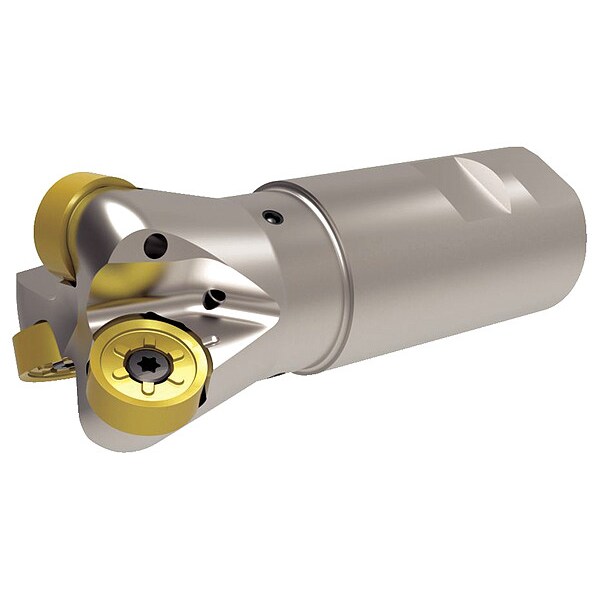

Widia Indexable Profiling End Mill, M200 Series, High Speed Steel, 0.3700 in Depth of Cut M200D200Z03W150RN64 - main

Indexable Profiling End Mill, M200 Series, High Speed Steel, 0.3700 in Depth of Cut

  • Mfr # M200D200Z03W150RN64

  • Zoro # G3797009

product price:  $863.99
/ea
Free Shipping & Returns

Key Features

Series
M200
Overall Length
4.6900 in
Depth of Cut
0.3700 in
Material - Machining
High Speed Steel
Insert Size
RN_J64__
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
M200D200Z03W150RN64
Zoro #
G3797009
UPC #
4056544154002
Country of Origin
United States

Dimensions

Overall Length
4.6900 in
Depth of Cut
0.3700 in
Insert Size
RN_J64__
Shank Dia.
1-1/2 in
Shank Length
2.6900 in
Neck Dia.
1-3/8 in
Max. Cutting Dia.
2 in
Head Dia.
2 in

Details

Item
Indexable Profiling End Mill
Series
M200
Material - Machining
High Speed Steel
Cutting Direction
Right Hand
Insert Shape
Round
Rake
-11 Degrees Radial, -7 Degrees Axial
Features
12 Cutting Edges, Anti-Rotation Feature for Better Stability and Higher Feed Rates, Double-Sided, Excellent for Heavy Roughing and Semi-Finishing of all Materials, Suitable for High-Feed Face Milling Operations
Max. Speed
19,000 RPM
Coolant Fed
Coolant Through
Insert Style
RNGJ64
Insert Holding Type
Screw
Cutting Application
3D Profiling, Face Milling, Pocketing, Side/Shoulder Milling: Ball Nose, Slotting: Square End
Compatible Hardware
Insert Screw M5x0.8 x 14.T20, T Handle Torx Wrench
Number of Inserts
3
ANSI Code
M200D200Z03W150RN64
Insert Inscribed Circle
3/4 in
ISO Number
M200D200Z03W150RN64
Shank Type - Machining
Weldon Flat

Description

Indexable Profiling End Mill, Max. Cutting Dia. 2 in, Depth of Cut 0.3700 in, Shank Dia. 1-1/2 in, Overall Length 4.6900 in, ANSI Code M200D200Z03W150RN64, Compatible Hardware Insert Screw M5x0.8 x 14.T20, T Handle Torx Wrench, Coolant Fed Coolant Through, Cutting Application 3D Profiling, Face Milling, Pocketing, Side/Shoulder Milling: Ball Nose, Slotting: Square End
