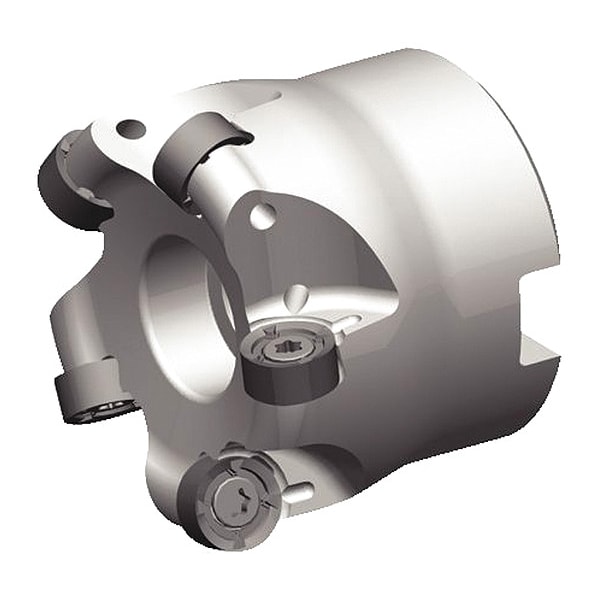

Indexable Profiling End Mill, M200 Series, High Speed Steel, 5.00mm Depth of Cut
Mfr # M200D40Z04RN10
Zoro # G3781405
product price: $736.99
/ea
Free Shipping & Returns
Key Features
Series
M200
Overall Length
40.00mm
Depth of Cut
5.00mm
Material - Machining
High Speed Steel
Insert Size
10T3
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
M200D40Z04RN10
Zoro #
G3781405
UPC #
4050839314263
Country of Origin
Germany
Dimensions
Overall Length
40.00mm
Depth of Cut
5.00mm
Insert Size
10T3
Max. Cutting Dia.
40.00mm
Arbor Dia.
16.00mm
Hub Outside Dia.
38.00mm
Details
Item
Indexable Profiling End Mill
Series
M200
Material - Machining
High Speed Steel
Cutting Direction
Right Hand
Insert Shape
Round
Rake
-11 Degrees Radial, -7 Degrees Axial
Number of Inserts
4
ANSI Code
M200D40Z04RN10
Insert Style
RN J M
Cutting Application
3D Profiling, Face Milling, Pocketing, Side and Face Milling, Side/Shoulder Milling: Ball Nose, Slotting: Square End
Coolant Fed
Coolant Through
Max. Speed
43,200 RPM
Features
Anti-Rotation Feature for Better Stability and Higher Feed Rates, Double-Sided, Eight Cutting Edges, Pocketing and Profiling Capabilities
Insert Holding Type
Screw
ISO Number
M200D40Z04RN10
Compatible Hardware
Anti-Seize Lubricant, Cylindrical Screw DIN912 M8x25, Insert Screw M3.5x0.6 x 8.3 T15, SHCS with Coolant Groove, Torx Wrench TX15
Description
Indexable Profiling End Mill, Max. Cutting Dia. 40.00mm, Depth of Cut 5.00mm, Overall Length 40.00mm, ANSI Code M200D40Z04RN10, Compatible Hardware Anti-Seize Lubricant, Cylindrical Screw DIN912 M8x25, Insert Screw M3.5x0.6 x 8.3 T15, SHCS with Coolant Groove, Torx Wrench TX15, Coolant Fed Coolant Through, Cutting Application 3D Profiling, Face Milling, Pocketing, Side and Face Milling, Side/Shoulder Milling: Ball Nose, Slotting: Square End
