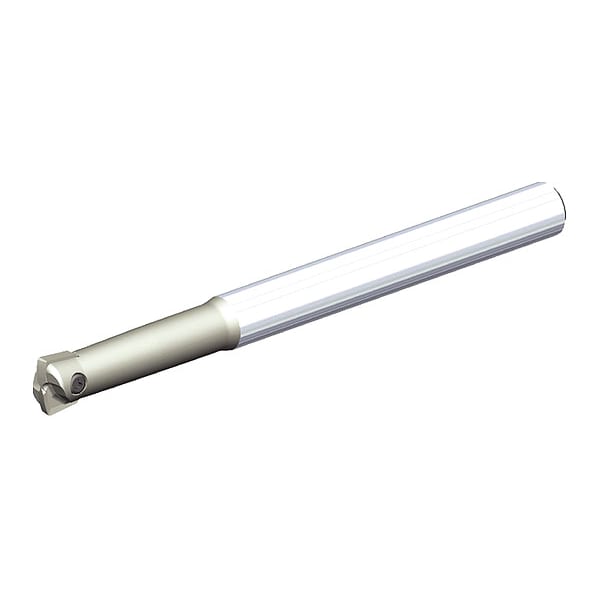

Indexable Profiling End Mill, M270 Series, Carbide, 0.62mm Depth of Cut
Mfr # M270TD012A12L120C
Zoro # G3796309
product price: $745.99
/ea
Free Shipping & Returns
Key Features
Series
M270
Overall Length
120.00mm
Depth of Cut
0.62mm
Material - Machining
Carbide
Shank Dia.
12.00mm
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
M270TD012A12L120C
Zoro #
G3796309
UPC #
4021169617461
Country of Origin
Germany
Dimensions
Overall Length
120.00mm
Depth of Cut
0.62mm
Shank Dia.
12.00mm
Insert Size
M270HF12
Neck Dia.
10.61mm
Head Projection Length
50.00mm
Insert Cutting Edge Length
12.39mm
Head Dia.
12.00mm
Max. Cutting Dia.
13.00mm
Shank Length
70.00mm
Description
Indexable Profiling End Mill, Max. Cutting Dia. 13.00mm, Depth of Cut 0.62mm, Shank Dia. 12.00mm, Overall Length 120.00mm, ANSI Code M270TD012A12L120C, Compatible Hardware Insert Screw M3x0.5 x 9.9 T9, Torx Wrench, Coolant Fed Coolant Through, Cutting Application Face Milling, Helical Milling, Pocketing, Ramping: Blank, Side/Shoulder Milling: Square End, Slotting: Square End
