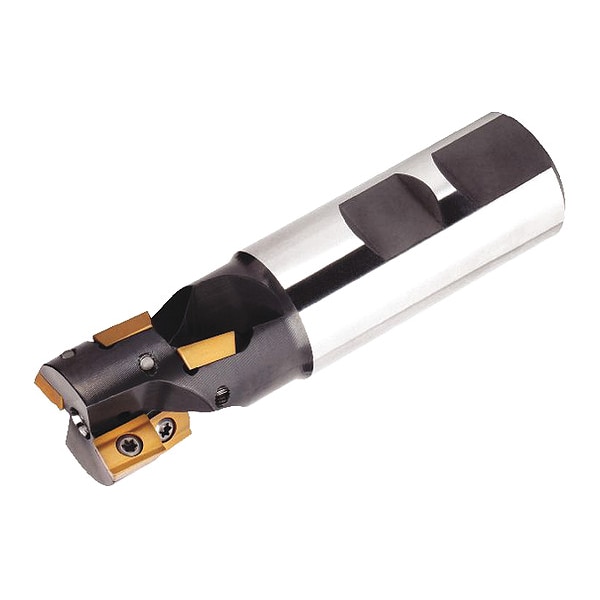

Indexable Profiling End Mill, M300 Series, High Speed Steel, 46.00mm Depth of Cut
Mfr # 12393001600
Zoro # G3801120
product price:Â $1,988.99
/ea
Free Shipping & Returns
Key Features
Series
M300
Overall Length
120.00mm
Depth of Cut
46.00mm
Material - Machining
High Speed Steel
Shank Dia.
32.00mm
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
12393001600
Zoro #
G3801120
UPC #
4021169169762
Country of Origin
Germany
Dimensions
Overall Length
120.00mm
Depth of Cut
46.00mm
Shank Dia.
32.00mm
Insert Size
10T308
Shank Length
60.00mm
Head Projection Length
60.00mm
Min. Cutting Dia.
40.00mm
Details
Item
Indexable Profiling End Mill
Series
M300
Material - Machining
High Speed Steel
Cutting Direction
Right Hand
Insert Shape
85 Degrees Parallelogram
ANSI Code
12393001600
ISO Number
12393001600
Insert Holding Type
Screw
Max. Speed
20,600 RPM
Toolholder Style
AO10T3
Coolant Fed
Coolant Through
Features
First Choice for Small Diameter, Slot and Profile Milling
Insert Style
AONTmm
Shank Type - Machining
Weldon Flat
Cutting Application
Face Milling, Side/Shoulder Milling: Square End
Compatible Hardware
Insert Screw M3.5x0.5 x 9 T9, Torx Wrench
Description
Indexable Profiling End Mill, Depth of Cut 46.00mm, Shank Dia. 32.00mm, Overall Length 120.00mm, ANSI Code 12393001600, Compatible Hardware Insert Screw M3.5x0.5 x 9 T9, Torx Wrench, Coolant Fed Coolant Through, Cutting Application Face Milling, Side/Shoulder Milling: Square End
