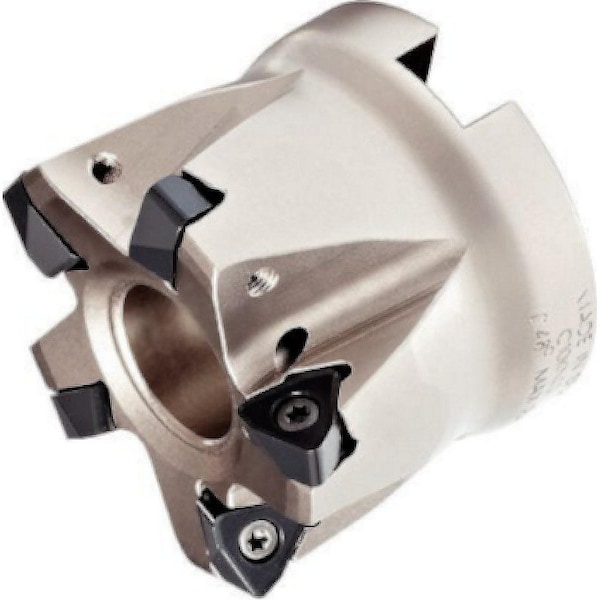

Indexable Profiling End Mill, M370 Series, High Speed Steel, 1.25mm Depth of Cut
Mfr # M370D040Z04WO08
Zoro # G3800533
product price: $573.99
/ea
Free Shipping & Returns
Key Features
Series
M370
Overall Length
40.00mm
Depth of Cut
1.25mm
Material - Machining
High Speed Steel
Cutting Direction
Right Hand
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
M370D040Z04WO08
Zoro #
G3800533
UPC #
4021169616426
Country of Origin
Germany
Dimensions
Overall Length
40.00mm
Depth of Cut
1.25mm
Insert Size
80412
Max. Cutting Dia.
40.00mm
Arbor Dia.
16.00mm
Hub Outside Dia.
37.00mm
Details
Item
Indexable Profiling End Mill
Series
M370
Material - Machining
High Speed Steel
Cutting Direction
Right Hand
Insert Shape
Trigon
Rake
-11 Degrees Axial, -12 Degrees Radial
Insert Style
WOEJ SRMH
Number of Inserts
4
Compatible Hardware
Hardware Chave Torx DT-9IP, Insert Screw M3x0.5 x 9 IP9, SHCS with Coolant Groove
Max. Speed
33,500 RPM
Coolant Fed
Coolant Through
ISO Number
M370D040Z04WO08
Features
Double-Sided, First Choice for Roughing Applications, High Metal Removal Rates, Six Cutting Edges
ANSI Code
M370D040Z04WO08
Insert Holding Type
Screw
Cutting Application
3D Profiling, Face Milling, Helical Milling, Plunge Milling, Pocketing, Ramping: Blank, Side and Face Milling, Side/Shoulder Milling: Roughing, Slotting: Square End
Description
Indexable Profiling End Mill, Max. Cutting Dia. 40.00mm, Depth of Cut 1.25mm, Overall Length 40.00mm, ANSI Code M370D040Z04WO08, Compatible Hardware Hardware Chave Torx DT-9IP, Insert Screw M3x0.5 x 9 IP9, SHCS with Coolant Groove, Coolant Fed Coolant Through, Cutting Application 3D Profiling, Face Milling, Helical Milling, Plunge Milling, Pocketing, Ramping: Blank, Side and Face Milling, Side/Shoulder Milling: Roughing, Slotting: Square End
