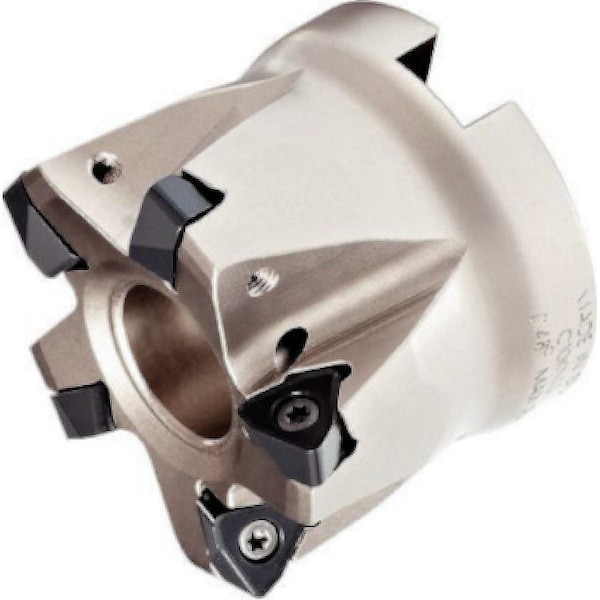

Indexable Profiling End Mill, M370 Series, High Speed Steel, 1.25mm Depth of Cut
Mfr # M370D050Z05WO08
Zoro # G3796753
product price:Â $704.99
/ea
Free Shipping & Returns
Key Features
Series
M370
Overall Length
40.00mm
Depth of Cut
1.25mm
Material - Machining
High Speed Steel
Insert Size
80412
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
M370D050Z05WO08
Zoro #
G3796753
UPC #
4021169647239
Country of Origin
Japan
Dimensions
Overall Length
40.00mm
Depth of Cut
1.25mm
Insert Size
80412
Max. Cutting Dia.
50.00mm
Arbor Dia.
22.00mm
Hub Outside Dia.
44.00mm
Details
Item
Indexable Profiling End Mill
Series
M370
Material - Machining
High Speed Steel
Cutting Direction
Right Hand
Insert Shape
Trigon
Rake
-11 Degrees Axial, -12 Degrees Radial
Max. Speed
29,200 RPM
Insert Holding Type
Screw
ISO Number
M370D050Z05WO08
Cutting Application
3D Profiling, Face Milling, Helical Milling, Plunge Milling, Pocketing, Ramping: Blank, Side and Face Milling, Side/Shoulder Milling: Roughing, Slotting: Square End
Features
Double-Sided, First Choice for Roughing Applications, High Metal Removal Rates, Six Cutting Edges
Coolant Fed
Coolant Through
ANSI Code
M370D050Z05WO08
Compatible Hardware
Coolant Screw, Hardware Chave Torx DT-9IP, Insert Screw M3x0.5 x 9 IP9
Number of Inserts
5
Insert Style
WOEJ SRMH
Description
Indexable Profiling End Mill, Max. Cutting Dia. 50.00mm, Depth of Cut 1.25mm, Overall Length 40.00mm, ANSI Code M370D050Z05WO08, Compatible Hardware Coolant Screw, Hardware Chave Torx DT-9IP, Insert Screw M3x0.5 x 9 IP9, Coolant Fed Coolant Through, Cutting Application 3D Profiling, Face Milling, Helical Milling, Plunge Milling, Pocketing, Ramping: Blank, Side and Face Milling, Side/Shoulder Milling: Roughing, Slotting: Square End
