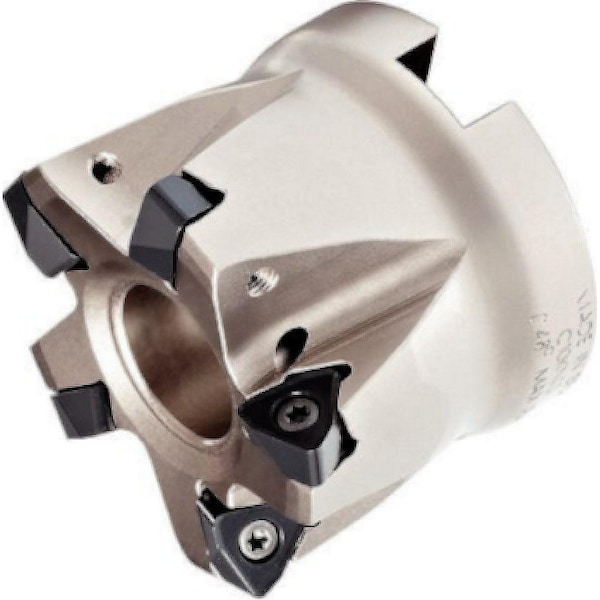

Indexable Profiling End Mill, M370 Series, High Speed Steel, 1.25mm Depth of Cut
Mfr # M370D052Z06WO08
Zoro # G3796799
product price:Â $734.99
/ea
Free Shipping & Returns
Key Features
Series
M370
Overall Length
50.00mm
Depth of Cut
1.25mm
Material - Machining
High Speed Steel
Insert Size
80412
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
M370D052Z06WO08
Zoro #
G3796799
UPC #
4021169589744
Country of Origin
United States
Dimensions
Overall Length
50.00mm
Depth of Cut
1.25mm
Insert Size
80412
Max. Cutting Dia.
52.00mm
Arbor Dia.
22.00mm
Hub Outside Dia.
44.00mm
Details
Item
Indexable Profiling End Mill
Series
M370
Material - Machining
High Speed Steel
Cutting Direction
Right Hand
Insert Shape
80 Degrees Trigon
Rake
-11 Degrees Axial, -12 Degrees Radial
Insert Style
WOEJ SRMH
Insert Holding Type
Screw
Number of Inserts
6
Max. Speed
28,600 RPM
Features
Double-Sided, First Choice for Roughing Applications, High Metal Removal Rates, Six Cutting Edges
Compatible Hardware
Coolant Screw, Hardware Chave Torx DT-9IP, Insert Screw M3x0.5 x 9 IP9
ISO Number
M370D052Z06WO08
Coolant Fed
Coolant Through
Cutting Application
3D Profiling, Face Milling, Helical Milling, Plunge Milling, Pocketing, Ramping: Blank, Side and Face Milling, Side/Shoulder Milling: Roughing, Slotting: Square End
ANSI Code
M370D052Z06WO08
Description
Indexable Profiling End Mill, Max. Cutting Dia. 52.00mm, Depth of Cut 1.25mm, Overall Length 50.00mm, ANSI Code M370D052Z06WO08, Compatible Hardware Coolant Screw, Hardware Chave Torx DT-9IP, Insert Screw M3x0.5 x 9 IP9, Coolant Fed Coolant Through, Cutting Application 3D Profiling, Face Milling, Helical Milling, Plunge Milling, Pocketing, Ramping: Blank, Side and Face Milling, Side/Shoulder Milling: Roughing, Slotting: Square End
