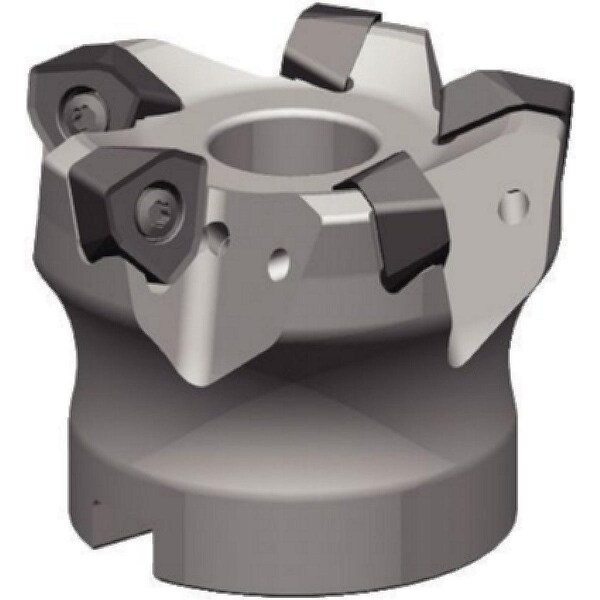

Indexable Profiling End Mill, M370 Series, High Speed Steel, 2.00mm Depth of Cut
Mfr # M370D125Z07WO12
Zoro # G3800962
product price:Â $1,573.99
/ea
Free Shipping & Returns
Key Features
Series
M370
Overall Length
63.00mm
Depth of Cut
2.00mm
Material - Machining
High Speed Steel
Cutting Direction
Right Hand
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
M370D125Z07WO12
Zoro #
G3800962
UPC #
4050839379125
Country of Origin
Mexico
Dimensions
Overall Length
63.00mm
Depth of Cut
2.00mm
Insert Size
120713
Max. Cutting Dia.
125.00mm
Arbor Dia.
40.00mm
Hub Outside Dia.
90.00mm
Details
Item
Indexable Profiling End Mill
Series
M370
Material - Machining
High Speed Steel
Cutting Direction
Right Hand
Rake
-11 Degrees Axial, 9 Degrees Radial
Features
Double-Sided, First Choice for Roughing Applications, High Metal Removal Rates, Six Cutting Edges
Insert Style
WOEJ R
Compatible Hardware
Coolant Screw Assembly M20, Insert Screw M4x0.7 x 11.5 IP15, Star Screw M20 x40, Torx Plus Drive Wrench DT15IP
Coolant Fed
Coolant Through
Cutting Application
3D Profiling, Face Milling, Helical Milling, Plunge Milling, Pocketing, Ramping: Blank, Side and Face Milling, Side/Shoulder Milling: Roughing, Slotting: Square End
ISO Number
M370D125Z07WO12
ANSI Code
M370D125Z07WO12
Number of Inserts
7
Max. Speed
12,350 RPM
Insert Holding Type
Screw
Description
Indexable Profiling End Mill, Max. Cutting Dia. 125.00mm, Depth of Cut 2.00mm, Overall Length 63.00mm, ANSI Code M370D125Z07WO12, Compatible Hardware Coolant Screw Assembly M20, Insert Screw M4x0.7 x 11.5 IP15, Star Screw M20 x40, Torx Plus Drive Wrench DT15IP, Coolant Fed Coolant Through, Cutting Application 3D Profiling, Face Milling, Helical Milling, Plunge Milling, Pocketing, Ramping: Blank, Side and Face Milling, Side/Shoulder Milling: Roughing, Slotting: Square End
