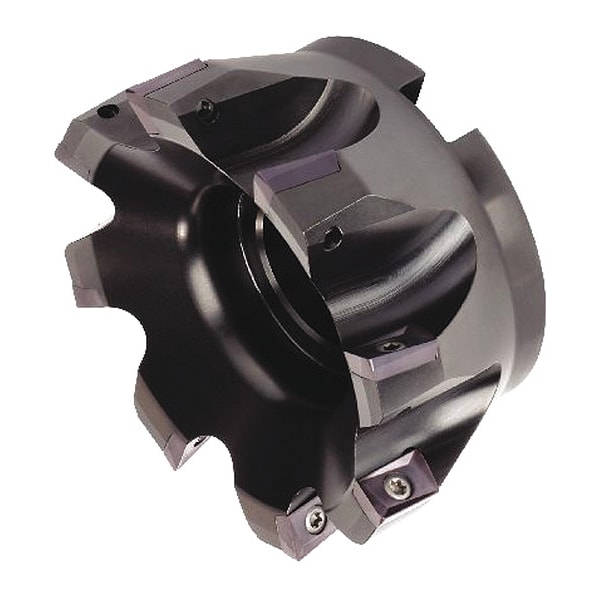

Indexable Profiling End Mill, M680 Series, High Speed Steel, 14.00mm Depth of Cut
Mfr # 12396904000
Zoro # G3797864
product price: $659.99
/ea
Free Shipping & Returns
Key Features
Series
M680
Overall Length
40.00mm
Depth of Cut
14.00mm
Material - Machining
High Speed Steel
Cutting Direction
Right Hand
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
12396904000
Zoro #
G3797864
UPC #
4021169021961
Country of Origin
India
Dimensions
Overall Length
40.00mm
Depth of Cut
14.00mm
Insert Size
160412
Arbor Dia.
22.00mm
Hub Outside Dia.
42.00mm
Details
Item
Indexable Profiling End Mill
Series
M680
Material - Machining
High Speed Steel
Cutting Direction
Right Hand
Insert Shape
80 Degrees Parallelogram
Number of Inserts
5
ISO Number
12396904000
Insert Holding Type
Screw
Max. Speed
12,500 RPM
Insert Style
XPT
Features
Excellent Selection of Grades and Geometries, Strong Insert Providing High Reliability
Coolant Fed
Coolant Through
Cutting Application
Face Milling, Side and Face Milling, Side/Shoulder Milling: Square End, Slotting: Square End
Compatible Hardware
Insert Screw M3.5x0.6 x 8.9 T15, Torx Wrench
ANSI Code
12396904000
Description
Indexable Profiling End Mill, Depth of Cut 14.00mm, Overall Length 40.00mm, ANSI Code 12396904000, Compatible Hardware Insert Screw M3.5x0.6 x 8.9 T15, Torx Wrench, Coolant Fed Coolant Through, Cutting Application Face Milling, Side and Face Milling, Side/Shoulder Milling: Square End, Slotting: Square End
