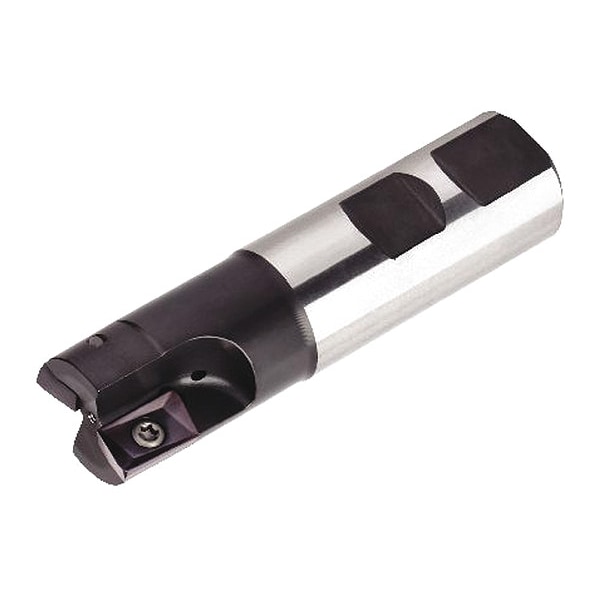

Indexable Profiling End Mill, M680 Series, High Speed Steel, 14.00mm Depth of Cut
Mfr # 12396923400
Zoro # G3799389
product price: $559.99
/ea
Free Shipping & Returns
Key Features
Series
M680
Overall Length
110.00mm
Depth of Cut
14.00mm
Material - Machining
High Speed Steel
Insert Size
1604
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
12396923400
Zoro #
G3799389
UPC #
4021169022173
Country of Origin
India
Dimensions
Overall Length
110.00mm
Depth of Cut
14.00mm
Insert Size
1604
Arbor Dia.
32.00mm
Details
Item
Indexable Profiling End Mill
Series
M680
Material - Machining
High Speed Steel
Cutting Direction
Right Hand
Insert Shape
80 Degrees Parallelogram
Rake
-6 Degrees Radial, 6 Degrees Axial
Features
Excellent Selection of Grades and Geometries, Strong Insert Providing High Reliability
Number of Inserts
4
Insert Style
XPHT AL
Insert Holding Type
Screw
Max. Speed
14,000 RPM
ISO Number
12396923400
Shank Type - Machining
Weldon Flat
ANSI Code
12396923400
Compatible Hardware
Insert Screw M3.5x0.6 x 8.9 T15, Torx Wrench
Cutting Application
Face Milling, ¿Side/Shoulder Milling: Square End, Slotting: Square End
Coolant Fed
Coolant Through
Description
Indexable Profiling End Mill, Depth of Cut 14.00mm, Overall Length 110.00mm, ANSI Code 12396923400, Compatible Hardware Insert Screw M3.5x0.6 x 8.9 T15, Torx Wrench, Coolant Fed Coolant Through, Cutting Application Face Milling, ¿Side/Shoulder Milling: Square End, Slotting: Square End
Restrictions
WARNING:
Cancer
For more information go to
www.P65Warnings.ca.gov
