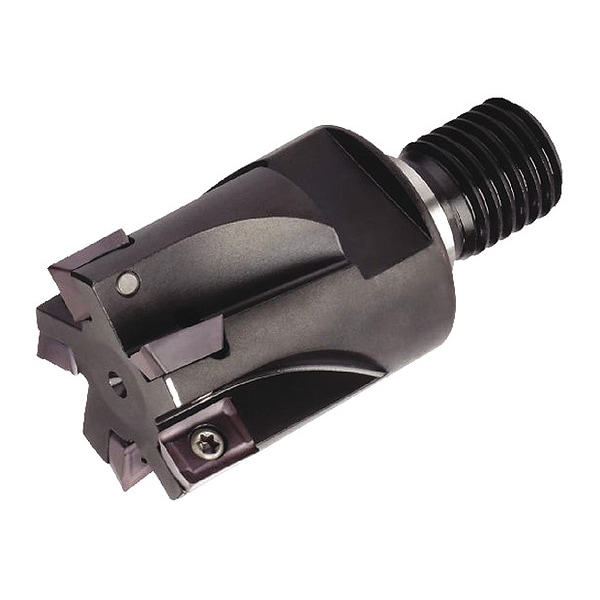

Indexable Profiling End Mill, M680 Series, High Speed Steel, 9.50mm Depth of Cut
Mfr # 12396931400
Zoro # G3783009
product price: $462.99
/ea
Free Shipping & Returns
Key Features
Series
M680
Overall Length
52.00mm
Depth of Cut
9.50mm
Material - Machining
High Speed Steel
Cutting Direction
Right Hand
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
12396931400
Zoro #
G3783009
UPC #
4021169175572
Country of Origin
Czechia
Dimensions
Overall Length
52.00mm
Depth of Cut
9.50mm
Insert Size
10T308
Shank Dia.
25.00mm
Connection Size
M12
Head Projection Length
30.00mm
Shank Length
22.00mm
Min. Cutting Dia.
25.00mm
Description
Indexable Profiling End Mill, Depth of Cut 9.50mm, Shank Dia. 25.00mm, Overall Length 52.00mm, ANSI Code 12396931400, Compatible Hardware Insert Screw M3x0.5 x 8 T9, Torx Wrench, Connection Size M12, Coolant Fed Coolant Through, Cutting Application Face Milling, Side/Shoulder Milling: Square End, Slotting: Square End
