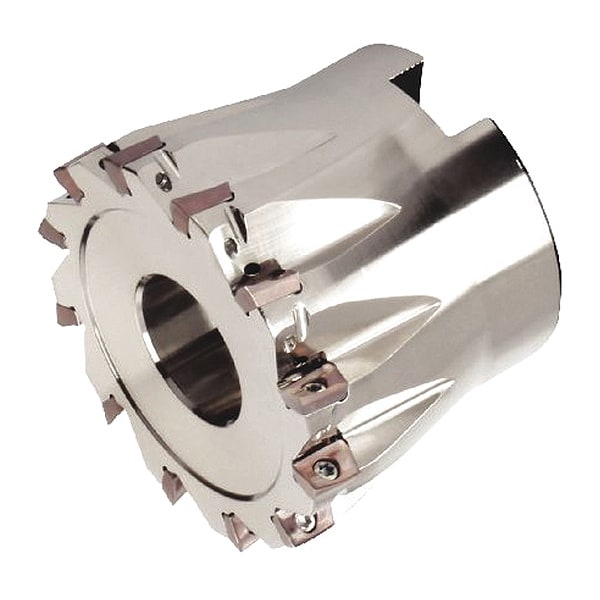

Indexable Profiling End Mill, M6800 Series, High Speed Steel, 6.00mm Depth of Cut
Mfr # 12396431000
Zoro # G3782473
product price: $983.99
/ea
Free Shipping & Returns
Key Features
Series
M6800
Overall Length
40.00mm
Depth of Cut
6.00mm
Material - Machining
High Speed Steel
Cutting Direction
Right Hand
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
12396431000
Zoro #
G3782473
UPC #
4021169762970
Country of Origin
Japan
Dimensions
Overall Length
40.00mm
Depth of Cut
6.00mm
Insert Size
0703
Arbor Dia.
22.00mm
Hub Outside Dia.
40.00mm
Details
Item
Indexable Profiling End Mill
Series
M6800
Material - Machining
High Speed Steel
Cutting Direction
Right Hand
Insert Shape
80 Degrees Parallelogram
Rake
-8.3 Degrees Radial, 7 Degrees Axial
Compatible Hardware
Insert Screw M2x0.4 x 4.1 T6, Torx Wrench
ISO Number
12396431000
Number of Inserts
12
ANSI Code
12396431000
Coolant Fed
Coolant Through
Side Cutting Edge Angle
90 Degrees
Cutting Application
Face Milling, Side and Face Milling, Side/Shoulder Milling: Square End, Slotting: Square End
Insert Style
BDMT
Insert Holding Type
Screw
Features
Excellent Surface Finish
Max. Speed
27,700 RPM
Description
Indexable Profiling End Mill, Depth of Cut 6.00mm, Overall Length 40.00mm, ANSI Code 12396431000, Compatible Hardware Insert Screw M2x0.4 x 4.1 T6, Torx Wrench, Coolant Fed Coolant Through, Cutting Application Face Milling, Side and Face Milling, Side/Shoulder Milling: Square End, Slotting: Square End
