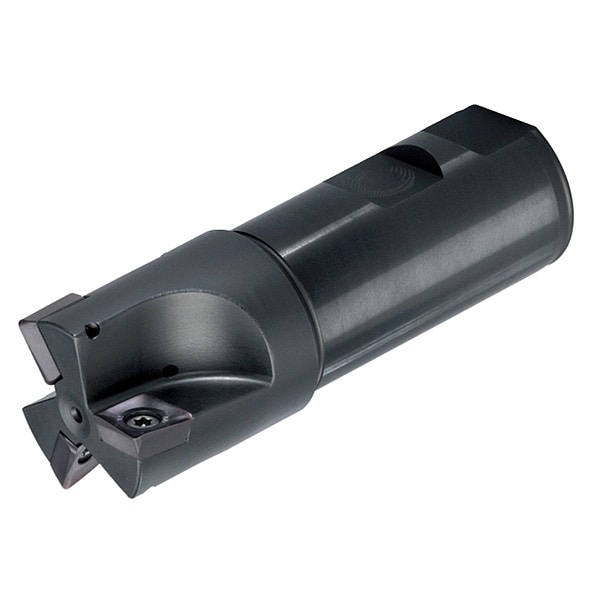

Indexable Profiling End Mill, M690 Series, High Speed Steel, 0.4000 in Depth of Cut
Mfr # M690D150Z03W125SD12
Zoro # G3781414
product price:Â $600.99
/ea
Free Shipping & Returns
Key Features
Series
M690
Overall Length
4 in
Depth of Cut
0.4000 in
Material - Machining
High Speed Steel
Insert Size
1204
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
M690D150Z03W125SD12
Zoro #
G3781414
UPC #
4021169314353
Country of Origin
India
Dimensions
Overall Length
4 in
Depth of Cut
0.4000 in
Insert Size
1204
Shank Dia.
1-1/4 in
Head Projection Length
1.7200 in
Min. Cutting Dia.
1-1/2 in
Details
Item
Indexable Profiling End Mill
Series
M690
Material - Machining
High Speed Steel
Cutting Direction
Right Hand
Insert Shape
Square
Max. Speed
22,400 RPM
Features
+/-3 micron Axial Adjustment Range, Excellent for Slot and Profile Milling, Four Cutting Edges
Cutting Application
Face Milling, Side/Shoulder Milling: Square End, Slotting: Square End
Number of Inserts
3
Coolant Fed
Coolant Through
Compatible Hardware
Insert Screw M3.5x0.6 x 9.5 T15, Torx Wrench
Insert Style
SDMT
Toolholder Style
SD1204
Shank Type - Machining
Weldon Flat
ISO Number
M690D150Z03W125SD12
ANSI Code
M690D150Z03W125SD12
Insert Holding Type
Screw
Description
Indexable Profiling End Mill, Depth of Cut 0.4000 in, Shank Dia. 1-1/4 in, Overall Length 4 in, ANSI Code M690D150Z03W125SD12, Compatible Hardware Insert Screw M3.5x0.6 x 9.5 T15, Torx Wrench, Coolant Fed Coolant Through, Cutting Application Face Milling, Side/Shoulder Milling: Square End, Slotting: Square End
