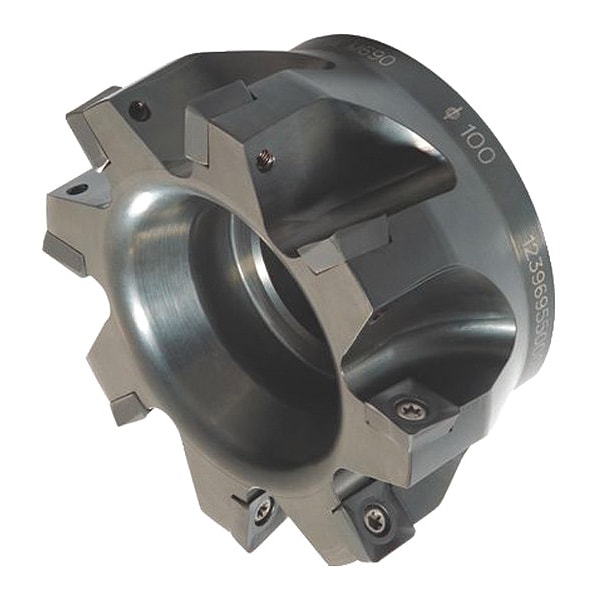

Indexable Profiling End Mill, M690 Series, High Speed Steel, 10.00mm Depth of Cut
Mfr # 12396954400
Zoro # G3801574
product price: $948.99
/ea
Free Shipping & Returns
Key Features
Series
M690
Overall Length
40.00mm
Depth of Cut
10.00mm
Material - Machining
High Speed Steel
Cutting Direction
Right Hand
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
12396954400
Zoro #
G3801574
UPC #
4021169021749
Country of Origin
Czechia
Dimensions
Overall Length
40.00mm
Depth of Cut
10.00mm
Insert Size
1204
Arbor Dia.
22.00mm
Hub Outside Dia.
50.00mm
Details
Item
Indexable Profiling End Mill
Series
M690
Material - Machining
High Speed Steel
Cutting Direction
Right Hand
Insert Shape
90 Degrees Square
Compatible Hardware
Insert Screw M3.5x0.6 x 9.5 T15, Torx Wrench
Number of Inserts
6
Features
Four Cutting Edges
Insert Style
SD
ISO Number
12396954400
Insert Holding Type
Screw
Side Cutting Edge Angle
90 Degrees
Max. Speed
20,000 RPM
Coolant Fed
Coolant Through
ANSI Code
12396954400
Cutting Application
Face Milling, Side and Face Milling, Side/Shoulder Milling: Square End, Slotting: Square End
Description
Indexable Profiling End Mill, Depth of Cut 10.00mm, Overall Length 40.00mm, ANSI Code 12396954400, Compatible Hardware Insert Screw M3.5x0.6 x 9.5 T15, Torx Wrench, Coolant Fed Coolant Through, Cutting Application Face Milling, Side and Face Milling, Side/Shoulder Milling: Square End, Slotting: Square End
