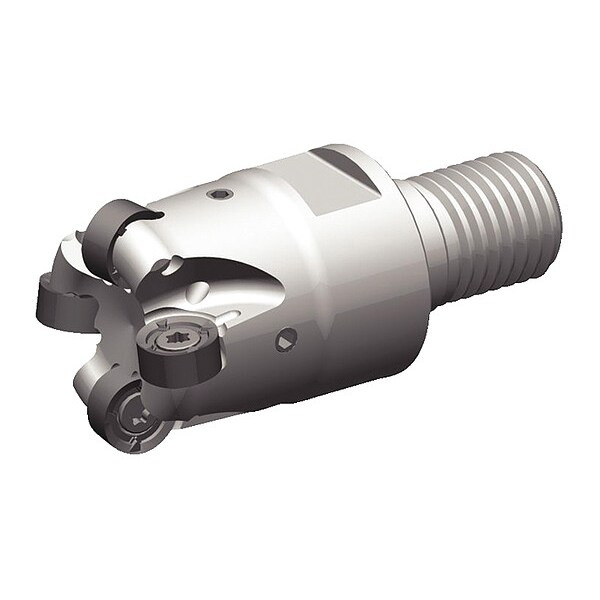

Indexable Profiling End Mill, SuperFeed Series, High Speed Steel, 1/4 in Depth of Cut
Mfr # WSSEM1002RH
Zoro # G3781441
product price: $764.99
/ea
Free Shipping & Returns
Key Features
Series
SuperFeed
Overall Length
3-1/2 in
Depth of Cut
1/4 in
Material - Machining
High Speed Steel
Insert Size
100031
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
WSSEM1002RH
Zoro #
G3781441
UPC #
4050839456604
Country of Origin
United States
Dimensions
Overall Length
3-1/2 in
Depth of Cut
1/4 in
Insert Size
100031
Shank Dia.
3/4 in
Min. Cutting Dia.
1 in
Shank Length
2 in
Head Projection Length
1-1/2 in
Details
Item
Indexable Profiling End Mill
Series
SuperFeed
Material - Machining
High Speed Steel
Cutting Direction
Right Hand
Insert Shape
Dov-Lok 90
ISO Number
WSSEM1002RH
Features
+/-3 micron Axial Adjustment Range, Easy Setup in a Simple System Design, Modified Standards Available, Through Coolant Capability
Number of Inserts
2
Max. Speed
35,500 RPM
Coolant Fed
Coolant Through
Number of Coolant Holes
2
Shank Type - Machining
Straight
Insert Holding Type
Wedge Clamp Before Insert
Insert Style
EDR
Compatible Hardware
Differential Screw 10-32 x 500, Superfeed Adjust Screw 10-32, Superfeed Barrel Wedge 10-32 l
Cutting Application
Face Milling, Side/Shoulder Milling: Square End
ANSI Code
WSSEM1002RH
Description
Indexable Profiling End Mill, Depth of Cut 1/4 in, Shank Dia. 3/4 in, Overall Length 3-1/2 in, ANSI Code WSSEM1002RH, Compatible Hardware Differential Screw 10-32 x 500, Superfeed Adjust Screw 10-32, Superfeed Barrel Wedge 10-32 l, Coolant Fed Coolant Through, Cutting Application Face Milling, Side/Shoulder Milling: Square End
