Indexable Profiling End Mill, VHSC Series, High Speed Steel, 16.00mm Depth of Cut

  • Mfr # VHSC032Z02A32XD16

  • Zoro # G3791740

product price:  $662.99
/ea
Free Shipping & Returns

Key Features

Series
VHSC
Overall Length
135.00mm
Depth of Cut
16.00mm
Material - Machining
High Speed Steel
Shank Dia.
32.00mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
VHSC032Z02A32XD16
Zoro #
G3791740
UPC #
4059782462762
Country of Origin
Multiple

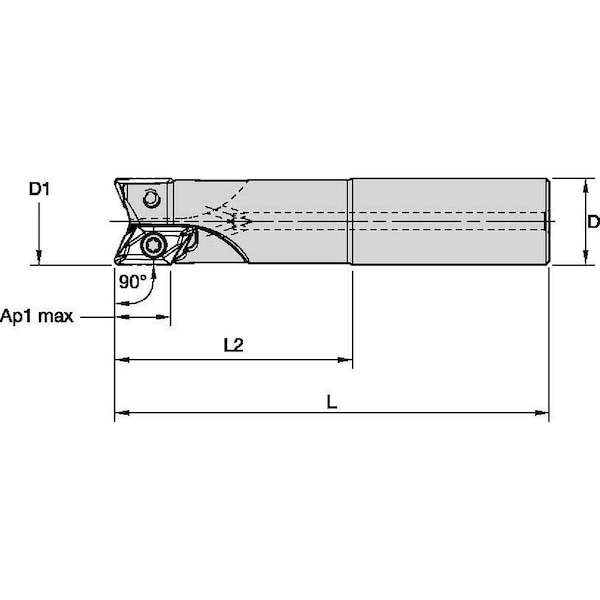

Dimensions

Overall Length
135.00mm
Depth of Cut
16.00mm
Shank Dia.
32.00mm
Insert Size
16M508
Min. Cutting Dia.
32.00mm
Shank Length
60.00mm
Head Projection Length
75.00mm

Details

Item
Indexable Profiling End Mill
Series
VHSC
Material - Machining
High Speed Steel
Cutting Direction
Right Hand
Rake
-11 Degrees Radial, 7 Degrees Axial
Insert Shape
89.27 Degrees Parallelogram
Features
Best-in-Class Solution for Thin-Walled and Stepping Down Machining, Consistent Axial Gage Length with Insert Nose Radii From 0.008 in (0.2mm) up to 0.236 in (6mm), Only One Cutter Body Style to Load Inserts with Nose Radii from 0.008 in (0.2mm) up to 0.236 in (6mm), Productivity Booster up to 525in3/min (8600cm3/min MRR at Machining Aluminum Components
Insert Style
XDET FRALP
Insert Holding Type
Screw
Number of Coolant Holes
2
Max. Speed
41,500 RPM
Shank Type - Machining
Straight
Toolholder Style
XD16
Number of Inserts
2
Cutting Application
Face Milling, Helical Milling, Pocketing, Ramping: Blank
Coolant Fed
Coolant Through
ANSI Code
VHSC032Z02A32XD16
ISO Number
VHSC032Z02A32XD16
Compatible Hardware
DP5009A, Torx Plus Drive Wrench

Description

Indexable Profiling End Mill, Depth of Cut 16.00mm, Shank Dia. 32.00mm, Overall Length 135.00mm, ANSI Code VHSC032Z02A32XD16, Compatible Hardware DP5009A, Torx Plus Drive Wrench, Coolant Fed Coolant Through, Cutting Application Face Milling, Helical Milling, Pocketing, Ramping: Blank

Restrictions

WARNING: Cancer For more information go to www.P65Warnings.ca.gov
