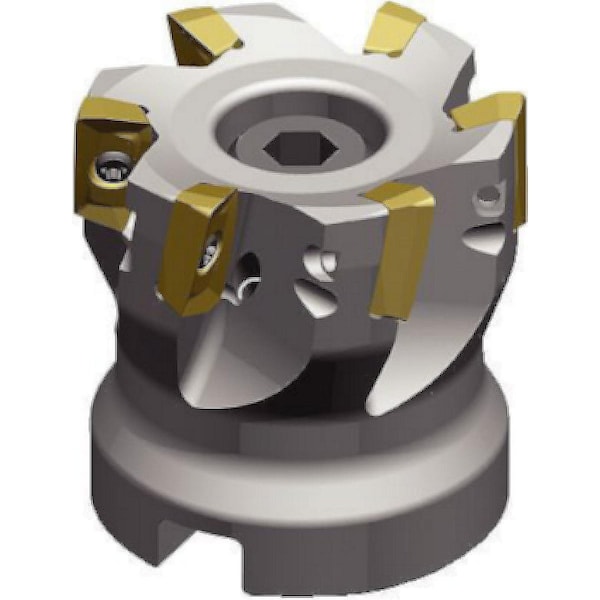

Indexable Profiling End Mill, VSM11 Series, High Speed Steel, 11.32mm Depth of Cut
Mfr # VSM11D063Z09S022XD11
Zoro # G3798022
product price:Â $800.99
/ea
Free Shipping & Returns
Key Features
Series
VSM11
Overall Length
40.00mm
Depth of Cut
11.32mm
Material - Machining
High Speed Steel
Insert Size
110408
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
VSM11D063Z09S022XD11
Zoro #
G3798022
UPC #
4050839636853
Country of Origin
United States
Dimensions
Overall Length
40.00mm
Depth of Cut
11.32mm
Insert Size
110408
Arbor Dia.
22.00mm
Hub Outside Dia.
44.00mm
Details
Item
Indexable Profiling End Mill
Series
VSM11
Material - Machining
High Speed Steel
Cutting Direction
Right Hand
Insert Shape
75 Degrees Parallelogram
Rake
-4.25 Degrees Radial, 12 Degrees Axial
Coolant Fed
Coolant Through
Compatible Hardware
Coolant Screw, Insert Screw M2.5x0.45 x 5.9 T8, Torx Wrench TX8
Number of Inserts
9
Features
Effective Internal Coolant Feature, Increased Ramping Capability, Precisely Reaching the Cutting Edge, Superior Wall and Surface Finish Capabilities, True 90 Degrees Capability
Cutting Application
Face Milling, Helical Milling, Pocketing, Ramping: Blank, Side and Face Milling, Side/Shoulder Milling: Square End, Slotting: Square End
Insert Holding Type
Screw
Max. Speed
17,500 RPM
ANSI Code
VSM11D063Z09S022XD11
Side Cutting Edge Angle
90 Degrees
Insert Style
XD.T PD R
ISO Number
VSM11D063Z09S022XD11
Description
Indexable Profiling End Mill, Depth of Cut 11.32mm, Overall Length 40.00mm, ANSI Code VSM11D063Z09S022XD11, Compatible Hardware Coolant Screw, Insert Screw M2.5x0.45 x 5.9 T8, Torx Wrench TX8, Coolant Fed Coolant Through, Cutting Application Face Milling, Helical Milling, Pocketing, Ramping: Blank, Side and Face Milling, Side/Shoulder Milling: Square End, Slotting: Square End
