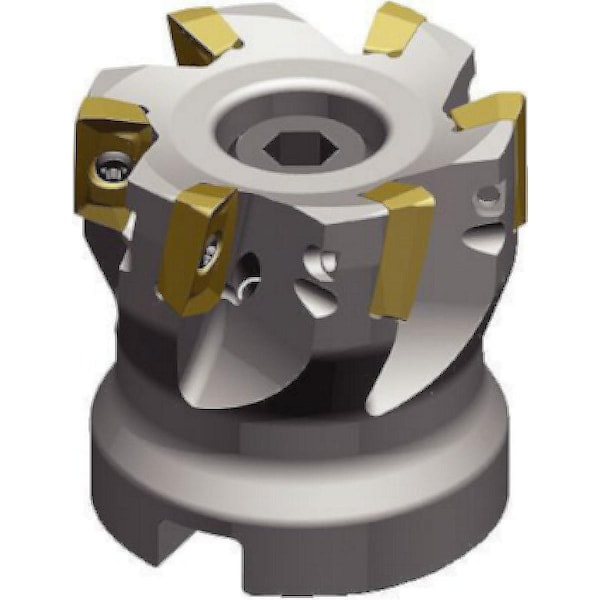

Indexable Profiling End Mill, VSM11 Series, High Speed Steel, 11.32mm Depth of Cut
Mfr # VSM11D080Z08S027XD11
Zoro # G3782211
product price:Â $830.99
/ea
Free Shipping & Returns
Key Features
Series
VSM11
Overall Length
50.00mm
Depth of Cut
11.32mm
Material - Machining
High Speed Steel
Insert Size
110408
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
VSM11D080Z08S027XD11
Zoro #
G3782211
UPC #
4050839636938
Country of Origin
Mexico
Dimensions
Overall Length
50.00mm
Depth of Cut
11.32mm
Insert Size
110408
Arbor Dia.
27.00mm
Hub Outside Dia.
60.00mm
Details
Item
Indexable Profiling End Mill
Series
VSM11
Material - Machining
High Speed Steel
Cutting Direction
Right Hand
Insert Shape
75 Degrees Parallelogram
Rake
-3.167 Degrees Radial, 12 Degrees Axial
ANSI Code
VSM11D080Z08S027XD11
Insert Style
XD.T PD R
Coolant Fed
Coolant Through
ISO Number
VSM11D080Z08S027XD11
Features
Effective Internal Coolant Feature, Increased Ramping Capability, Precisely Reaching the Cutting Edge, Superior Wall and Surface Finish Capabilities, True 90 Degrees Capability
Insert Holding Type
Screw
Max. Speed
15,300 RPM
Compatible Hardware
Insert Screw M2.5x0.45 x 5.9 T8, SHCS with Coolant Groove, Torx Wrench TX8
Cutting Application
Face Milling, Helical Milling, Pocketing, Ramping: Blank, Side and Face Milling, Side/Shoulder Milling: Square End, Slotting: Square End
Side Cutting Edge Angle
90 Degrees
Number of Inserts
8
Description
Indexable Profiling End Mill, Depth of Cut 11.32mm, Overall Length 50.00mm, ANSI Code VSM11D080Z08S027XD11, Compatible Hardware Insert Screw M2.5x0.45 x 5.9 T8, SHCS with Coolant Groove, Torx Wrench TX8, Coolant Fed Coolant Through, Cutting Application Face Milling, Helical Milling, Pocketing, Ramping: Blank, Side and Face Milling, Side/Shoulder Milling: Square End, Slotting: Square End
