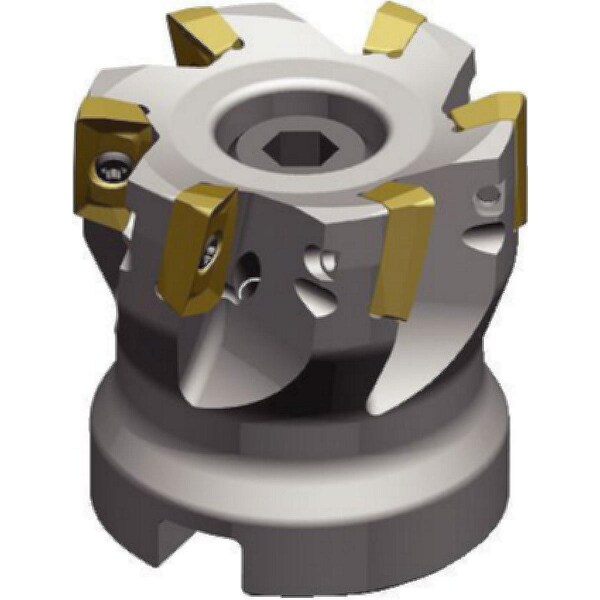

Indexable Profiling End Mill, VSM11 Series, High Speed Steel, 11.32mm Depth of Cut
Mfr # VSM11D100Z09S032XD11
Zoro # G3799039
product price:Â $950.99
/ea
Free Shipping & Returns
Key Features
Series
VSM11
Overall Length
50.00mm
Depth of Cut
11.32mm
Material - Machining
High Speed Steel
Insert Size
110408
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
VSM11D100Z09S032XD11
Zoro #
G3799039
UPC #
4050839637096
Country of Origin
United States
Dimensions
Overall Length
50.00mm
Depth of Cut
11.32mm
Insert Size
110408
Arbor Dia.
32.00mm
Hub Outside Dia.
80.00mm
Details
Item
Indexable Profiling End Mill
Series
VSM11
Material - Machining
High Speed Steel
Cutting Direction
Right Hand
Insert Shape
75 Degrees Parallelogram
Rake
-3.15 Degrees Radial, 12 Degrees Axial
Compatible Hardware
Coolant Screw Assembly M16, Insert Screw M2.5x0.45 x 5.9 T8, Torx Wrench TX8
Max. Speed
13,600 RPM
Cutting Application
Face Milling, Helical Milling, Pocketing, Ramping: Blank, Side and Face Milling, Side/Shoulder Milling: Square End, Slotting: Square End
ANSI Code
VSM11D100Z09S032XD11
Insert Style
XD.T PD R
Coolant Fed
Coolant Through
Number of Inserts
9
Features
Effective Internal Coolant Feature, Increased Ramping Capability, Precisely Reaching the Cutting Edge, Superior Wall and Surface Finish Capabilities, True 90 Degrees Capability
Insert Holding Type
Screw
ISO Number
VSM11D100Z09S032XD11
Side Cutting Edge Angle
90 Degrees
Description
Indexable Profiling End Mill, Depth of Cut 11.32mm, Overall Length 50.00mm, ANSI Code VSM11D100Z09S032XD11, Compatible Hardware Coolant Screw Assembly M16, Insert Screw M2.5x0.45 x 5.9 T8, Torx Wrench TX8, Coolant Fed Coolant Through, Cutting Application Face Milling, Helical Milling, Pocketing, Ramping: Blank, Side and Face Milling, Side/Shoulder Milling: Square End, Slotting: Square End
