  6. Indexable Profiling End Mill, VSM11 Series, High Speed Steel, 11.44mm Depth of Cut
Widia Indexable Profiling End Mill, VSM11 Series, High Speed Steel, 11.44mm Depth of Cut VSM11D032Z04B25XD11 - main

Indexable Profiling End Mill, VSM11 Series, High Speed Steel, 11.44mm Depth of Cut

  • Mfr # VSM11D032Z04B25XD11

  • Zoro # G3792851

product price:  $427.99
/ea
Free Shipping & Returns

Key Features

Series
VSM11
Overall Length
96.00mm
Depth of Cut
11.44mm
Material - Machining
High Speed Steel
Shank Dia.
25.00mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
VSM11D032Z04B25XD11
Zoro #
G3792851
UPC #
4061779093729
Country of Origin
Canada

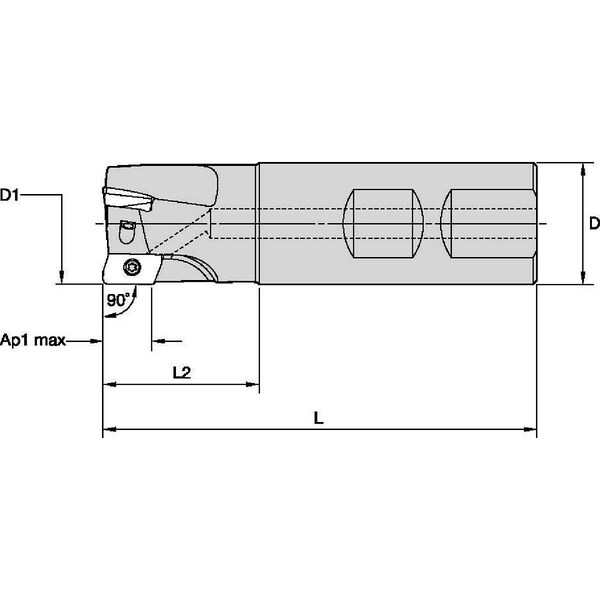

Dimensions

Overall Length
96.00mm
Depth of Cut
11.44mm
Shank Dia.
25.00mm
Insert Size
110408
Shank Length
56.00mm
Min. Cutting Dia.
32.00mm
Head Projection Length
40.00mm
Neck Dia.
29.45mm

Details

Item
Indexable Profiling End Mill
Series
VSM11
Material - Machining
High Speed Steel
Cutting Direction
Right Hand
Insert Shape
75 Degrees Parallelogram
Rake
-6.567 Degrees Radial, 9.6 Degrees Axial
Shank Type - Machining
Weldon Flat
Insert Holding Type
Screw
Number of Coolant Holes
1
Compatible Hardware
Insert Screw M2.5x0.45 x 5.9 T8, Torx Wrench TX8
Cutting Application
Face Milling, Helical Milling, Pocketing, Ramping: Blank, Side/Shoulder Milling: Square End
ANSI Code
VSM11D032Z04B25XD11
Coolant Fed
Coolant Through
ISO Number
VSM11D032Z04B25XD11
Toolholder Style
XDPT11
Features
Effective Internal Coolant Feature, Increased Ramping Capability, Precisely Reaching the Cutting Edge, Superior Wall and Surface Finish
Insert Style
XD.T PD R
Max. Speed
25,800 RPM
Side Cutting Edge Angle
90 Degrees
Number of Inserts
4

Description

Indexable Profiling End Mill, Depth of Cut 11.44mm, Shank Dia. 25.00mm, Overall Length 96.00mm, ANSI Code VSM11D032Z04B25XD11, Compatible Hardware Insert Screw M2.5x0.45 x 5.9 T8, Torx Wrench TX8, Coolant Fed Coolant Through, Cutting Application Face Milling, Helical Milling, Pocketing, Ramping: Blank, Side/Shoulder Milling: Square End

Restrictions

WARNING: Cancer For more information go to www.P65Warnings.ca.gov
