  6. Indexable Profiling End Mill, VSM11 Series, High Speed Steel, 11.52mm Depth of Cut

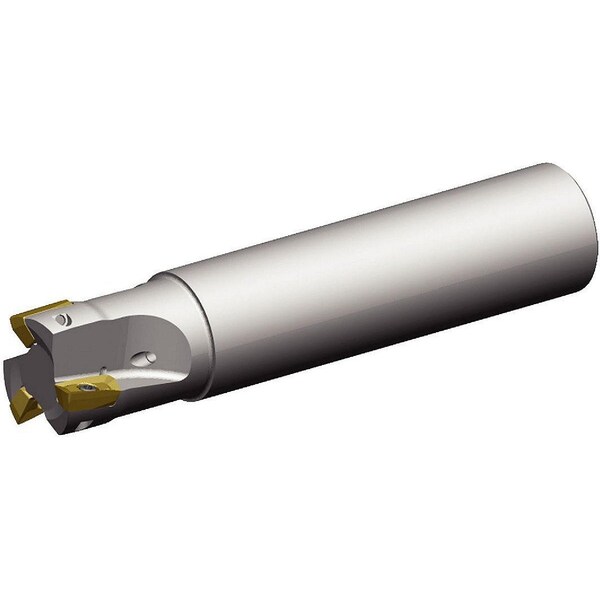

Widia Indexable Profiling End Mill, VSM11 Series, High Speed Steel, 11.52mm Depth of Cut VSM11D025Z03A25XD11L120 - main

Indexable Profiling End Mill, VSM11 Series, High Speed Steel, 11.52mm Depth of Cut

  • Mfr # VSM11D025Z03A25XD11L120

  • Zoro # G3803920

product price:  $410.99
/ea
Free Shipping & Returns

Key Features

Series
VSM11
Overall Length
120.00mm
Depth of Cut
11.52mm
Material - Machining
High Speed Steel
Cutting Direction
Right Hand
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
VSM11D025Z03A25XD11L120
Zoro #
G3803920
UPC #
4050839640690
Country of Origin
China

Dimensions

Overall Length
120.00mm
Depth of Cut
11.52mm
Shank Dia.
25.00mm
Insert Size
110408
Neck Dia.
22.75mm
Min. Cutting Dia.
25.00mm
Shank Length
87.00mm
Head Projection Length
33.00mm

Details

Item
Indexable Profiling End Mill
Series
VSM11
Material - Machining
High Speed Steel
Cutting Direction
Right Hand
Insert Shape
75 Degrees Parallelogram
Rake
-6.917 Degrees Radial, 8 Degrees Axial
ANSI Code
VSM11D025Z03A25XD11L120
Toolholder Style
XDPT11
ISO Number
VSM11D025Z03A25XD11L120
Features
Effective Internal Coolant Feature, Increased Ramping Capability, Precisely Reaching the Cutting Edge, Superior Wall and Surface Finish
Number of Coolant Holes
1
Coolant Fed
Coolant Through
Side Cutting Edge Angle
90 Degrees
Cutting Application
Face Milling, Helical Milling, Pocketing, Ramping: Blank, Side/Shoulder Milling: Square End
Insert Holding Type
Screw
Compatible Hardware
Insert Screw M2.5x0.45 x 5.9 T8, Torx Wrench TX8
Insert Style
XD.T PD R
Shank Type - Machining
Straight
Number of Inserts
3
Max. Speed
30,200 RPM

Description

Indexable Profiling End Mill, Depth of Cut 11.52mm, Shank Dia. 25.00mm, Overall Length 120.00mm, ANSI Code VSM11D025Z03A25XD11L120, Compatible Hardware Insert Screw M2.5x0.45 x 5.9 T8, Torx Wrench TX8, Coolant Fed Coolant Through, Cutting Application Face Milling, Helical Milling, Pocketing, Ramping: Blank, Side/Shoulder Milling: Square End

Restrictions

WARNING: Cancer For more information go to www.P65Warnings.ca.gov
