Indexable Profiling End Mill, VSM11 Series, High Speed Steel, 11.52mm Depth of Cut
Mfr # VSM11D025Z03B20XD11
Zoro # G3790952
product price:Â $395.99
/ea
Free Shipping & Returns
Key Features
Series
VSM11
Overall Length
82.00mm
Depth of Cut
11.52mm
Material - Machining
High Speed Steel
Cutting Direction
Right Hand
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
VSM11D025Z03B20XD11
Zoro #
G3790952
UPC #
4061779093590
Country of Origin
Taiwan, Province of China

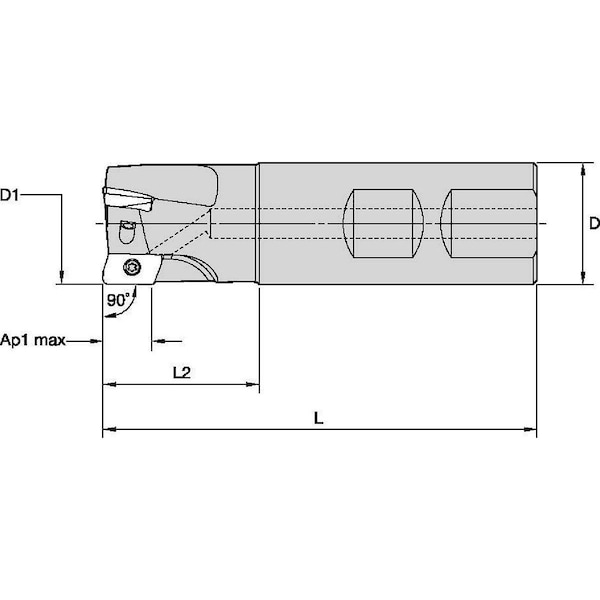

Dimensions
Overall Length
82.00mm
Depth of Cut
11.52mm
Insert Size
110408
Shank Dia.
20.00mm
Head Projection Length
31.00mm
Min. Cutting Dia.
25.00mm
Shank Length
51.00mm
Neck Dia.
22.74mm
Description
Indexable Profiling End Mill, Depth of Cut 11.52mm, Shank Dia. 20.00mm, Overall Length 82.00mm, ANSI Code VSM11D025Z03B20XD11, Compatible Hardware Insert Screw M2.5x0.45 x 5.9 T8, Torx Wrench TX8, Coolant Fed Coolant Through, Cutting Application Face Milling, Helical Milling, Pocketing, Ramping: Blank, Side/Shoulder Milling: Square End
