  6. Indexable Profiling End Mill, VSM11 Series, High Speed Steel, 11.52mm Depth of Cut

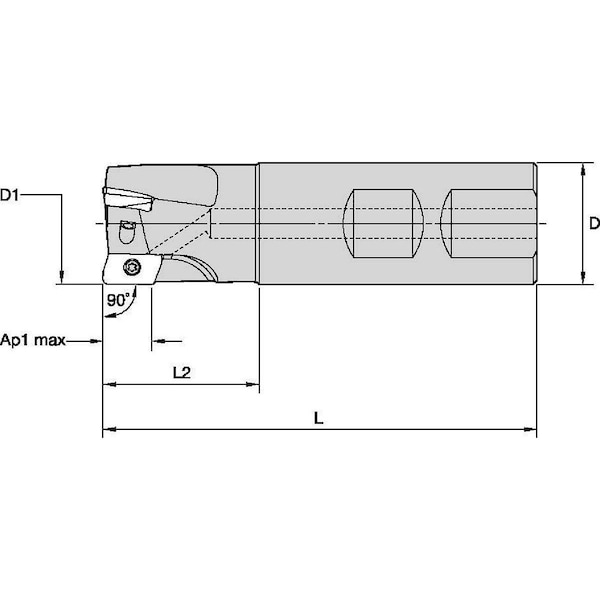

Widia Indexable Profiling End Mill, VSM11 Series, High Speed Steel, 11.52mm Depth of Cut VSM11D025Z04B25XD11 - main

Indexable Profiling End Mill, VSM11 Series, High Speed Steel, 11.52mm Depth of Cut

  • Mfr # VSM11D025Z04B25XD11

  • Zoro # G3801209

product price:  $413.99
/ea
Free Shipping & Returns

Key Features

Series
VSM11
Overall Length
88.00mm
Depth of Cut
11.52mm
Material - Machining
High Speed Steel
Shank Dia.
25.00mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
VSM11D025Z04B25XD11
Zoro #
G3801209
UPC #
4050839639335
Country of Origin
Israel

Dimensions

Overall Length
88.00mm
Depth of Cut
11.52mm
Shank Dia.
25.00mm
Insert Size
110408
Head Projection Length
31.00mm
Min. Cutting Dia.
25.00mm
Neck Dia.
22.75mm
Shank Length
57.00mm

Details

Item
Indexable Profiling End Mill
Series
VSM11
Material - Machining
High Speed Steel
Cutting Direction
Right Hand
Insert Shape
75 Degrees Parallelogram
Rake
-6.917 Degrees Radial, 8 Degrees Axial
Features
Effective Internal Coolant Feature, Increased Ramping Capability, Precisely Reaching the Cutting Edge, Superior Wall and Surface Finish
Side Cutting Edge Angle
90 Degrees
Shank Type - Machining
Weldon Flat
Toolholder Style
XDPT11
Insert Holding Type
Screw
ISO Number
VSM11D025Z04B25XD11
Number of Coolant Holes
1
Compatible Hardware
Insert Screw M2.5x0.45 x 5.9 T8, Torx Wrench TX8
Cutting Application
Face Milling, Helical Milling, Pocketing, Ramping: Blank, Side/Shoulder Milling: Square End
Number of Inserts
4
Insert Style
XD.T PD R
Coolant Fed
Coolant Through
Max. Speed
30,200 RPM
ANSI Code
VSM11D025Z04B25XD11

Description

Indexable Profiling End Mill, Depth of Cut 11.52mm, Shank Dia. 25.00mm, Overall Length 88.00mm, ANSI Code VSM11D025Z04B25XD11, Compatible Hardware Insert Screw M2.5x0.45 x 5.9 T8, Torx Wrench TX8, Coolant Fed Coolant Through, Cutting Application Face Milling, Helical Milling, Pocketing, Ramping: Blank, Side/Shoulder Milling: Square End

Restrictions

WARNING: Cancer For more information go to www.P65Warnings.ca.gov
