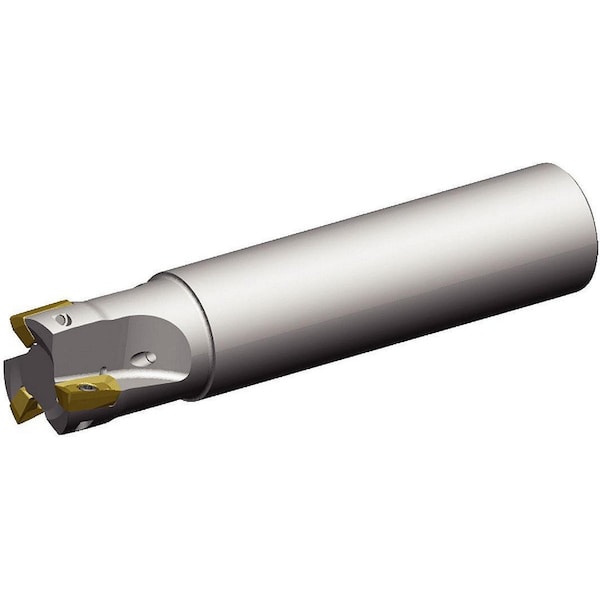

Indexable Profiling End Mill, VSM11 Series, High Speed Steel, 11.53mm Depth of Cut
Mfr # VSM11D016Z02A16XD11L170
Zoro # G3801854
product price:Â $387.99
/ea
Free Shipping & Returns
Key Features
Series
VSM11
Overall Length
170.00mm
Depth of Cut
11.53mm
Material - Machining
High Speed Steel
Cutting Direction
Right Hand
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
VSM11D016Z02A16XD11L170
Zoro #
G3801854
UPC #
4050839641017
Country of Origin
Bulgaria
Dimensions
Overall Length
170.00mm
Depth of Cut
11.53mm
Shank Dia.
16.00mm
Insert Size
110408
Min. Cutting Dia.
16.00mm
Shank Length
145.00mm
Neck Dia.
13.81mm
Head Projection Length
25.00mm
Description
Indexable Profiling End Mill, Depth of Cut 11.53mm, Shank Dia. 16.00mm, Overall Length 170.00mm, ANSI Code VSM11D016Z02A16XD11L170, Compatible Hardware Insert Screw M2.5x0.45 x 5.9 T8, Torx Wrench TX8, Coolant Fed Coolant Through, Cutting Application Face Milling, Helical Milling, Pocketing, Ramping: Blank, Side/Shoulder Milling: Square End
